Gantry Cranes
Truss Gantry Crane
Cost-effective truss gantry crane for large-span material handling, outdoor lifting, and industrial loading or unloading operations.
- Work Duty
- A3
- Rated Voltage
- 220V~660V, 50-60Hz, 3ph AC
- Work Environment
- -25°C~+40°C, RH ≤85%
- Control Mode
- Cabin control
Product Overview

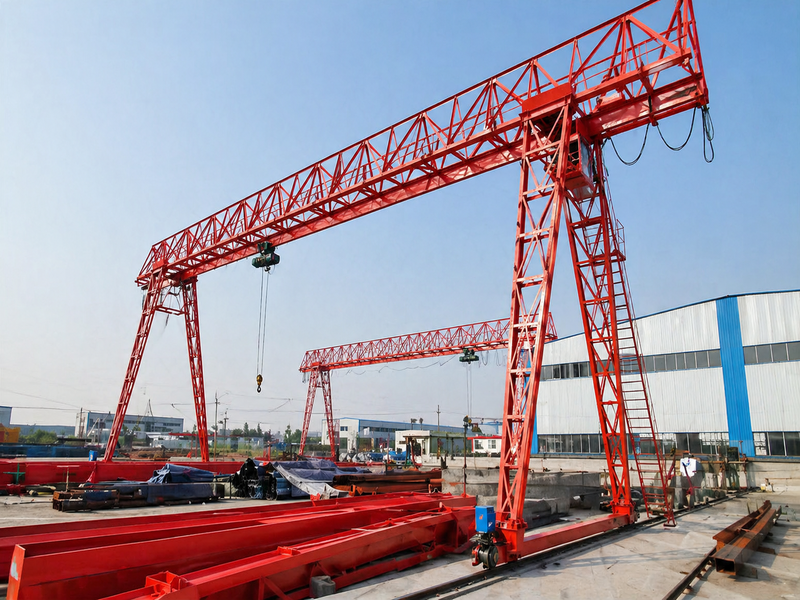

Truss Gantry Crane is suitable for loading and unloading goods in industrial and mining enterprises, workshops, warehouses, and outdoor handling areas. It can also be used for installation and maintenance operations at elevated working positions.
The crane uses a truss-style main beam design, making it suitable for projects that require large span coverage, reduced structural weight, and better wind resistance compared with heavy box-type structures.
According to lifting requirements and working conditions, truss gantry cranes can be selected for smaller and medium lifting tasks where material handling efficiency, transportation convenience, and cost control are important.
For related lifting solutions, you can also view our Gantry Cranes category, FEM Double Girder Gantry Crane, and Semi Gantry Crane.
Technical Parameters
| Parameter | 40t | 60t | 80t | 100t |
|---|---|---|---|---|
| Span Options (m) | 20 / 30 / 40 | 20 / 30 | ||
| Main Hook Lifting Height (m) | 9 | 12 | ||
| Main Hook Speed (m/min) | 1 | 0.95 | 0.8 | |
| Crab Traveling Speed (m/min) | 10 | 10.5 | ||
| Trolley Traveling Speed (m/min) | 14 | 15 | 13 | |
| Limit Dimension C1 (mm) | 1500 | 2000 | ||
| Limit Dimension C2 (mm) | 1500 / 2000 | 1500 / 2000 | 2000 | |
| Main Dimension H (mm) | 14828 | 17466 | ||
| Main Dimension H1 (mm) | 9000 | 12000 | ||
| Main Dimension H3 (mm) | 460 | 540 | ||
| Main Dimension B (mm) | 8286 | 12876 | ||
| Main Dimension K (mm) | 3000 | 3500 | ||
| Main Dimension W (mm) | 6000 | 7500 | ||
| Maximum Wheel Loading (kN) | 175 / 190 / 220 | 240 / 260 / 280 | 290 / 305 | 190 / 205 |
| Installed Power (kW) | 22.8 / 26 | 30 | 31.4 | 46.4 |
| Crane Rail Recommended | 43kg/m | |||
Key Features
Suitable for large-span material handling projects
Better wind resistance than heavy box-type structures
Lower material consumption compared with box-type gantry cranes
Suitable for loading, unloading, installation, and maintenance tasks
Available for industrial workshops, warehouses, and outdoor handling areas
More convenient for transportation and site installation
Can be selected when cost control and structural lightness are important
Suitable for projects with moderate lifting requirements
Customized Crane Solution
Truss Gantry Crane can be customized according to working site layout, lifting requirements, rail arrangement, outdoor operating condition, transportation requirement, and installation space.
Available customization includes truss beam structure, gantry frame layout, lifting mechanism, traveling mechanism, rail configuration, wheel assembly, electrical system, and safety protection arrangement.
- Customized truss beam structure
- Customized gantry frame and support leg layout
- Customized lifting and traveling mechanism
- Customized rail and wheel assembly configuration
- Customized solution for outdoor loading and unloading
- Customized design for workshop, warehouse, and yard handling
You may also compare this product with FEM Double Girder Gantry Crane for different structural and lifting requirements.
Get a Factory-Based Quotation
Send your capacity, span, lifting height and working site. Our team will help check the suitable crane type and provide a project-based quotation.
Parameter Check
We review capacity, span, lifting height, duty and site conditions before recommending a configuration.
Factory Configuration
Quotation is based on crane structure, hoist or trolley type, control system and safety options.
Export Support
Discuss packing, delivery reference, drawings and project communication for overseas orders.
What We Need
- Capacity, span, lifting height and working duty.
- Workshop or yard layout, runway condition and power supply.
- Working environment, daily operation time and special requirements.
- Destination country, quantity and drawings or photos if available.
How It Works
- Send parametersShare the project data you already know.
- Confirm configurationWe check crane type and key technical scope.
- Receive quotationGet factory-based price and selection support.
