Semi Gantry Crane
Semi gantry crane for indoor and outdoor material handling, combining gantry crane support with overhead crane runway operation.
- Capacity
- 2t-40t
- Span Length
- 15-30m
- Work Duty
- A3-A6
- Control Mode
- Pendant / Wireless remote / Cabin control
Product Overview

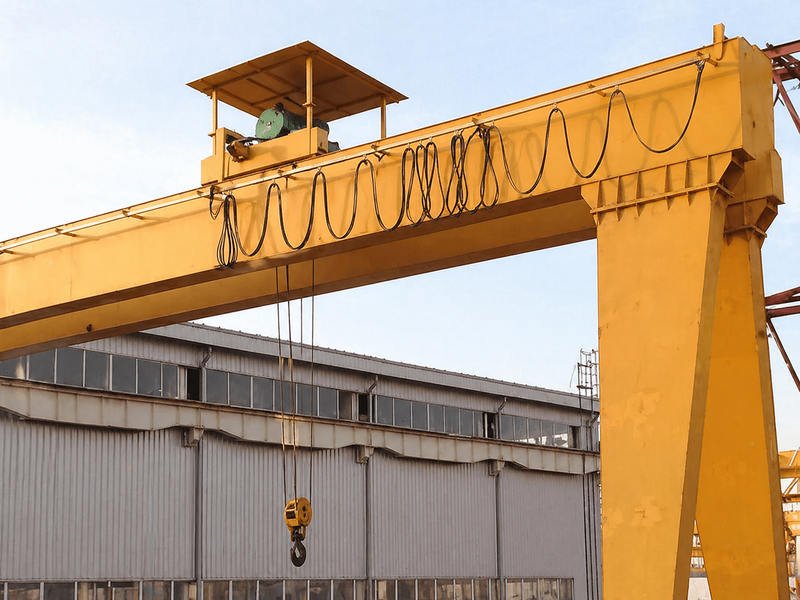

Semi Gantry Crane is a special form of gantry crane designed to make better use of existing workshop or yard structures. One side of the crane is supported by a ground leg, while the other side runs on an elevated runway system similar to an overhead crane.
This structure helps save production space compared with a full gantry crane and can reduce the need for additional building columns compared with an overhead crane. It is suitable for lifting, transporting, loading, and unloading in open-air operating sites and indoor workshops.
Semi-type gantry cranes include BMH type and BMG type. According to the lifting configuration, they can work with CD1, MD1, other electric hoists, LH hoist trolley, or QD trolley for different material handling requirements.

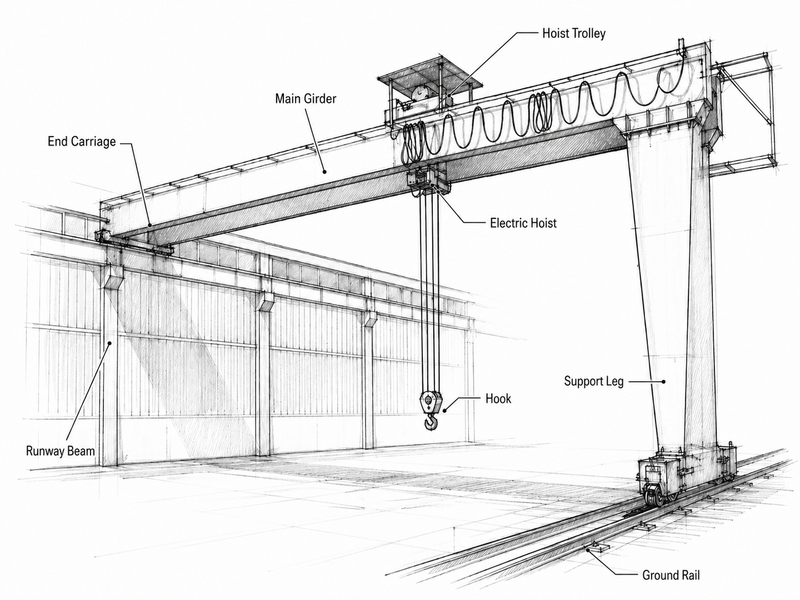

The crane is mainly composed of lifting mechanism and trolley, single or double main beam, support leg, end carriage, electric control box, operating system, and safety protection system.
Technical Parameters
| Parameter | Reference Content |
|---|---|
| Crane Type | BMH type / BMG type |
| Hoist Configuration | CD1, MD1, other electric hoists, LH hoist trolley, QD trolley |
| Lifting Height | 6m, 9m, 12m, etc. |
| Rated Voltage | 220V~690V, 50-60Hz, 3ph AC |
| Work Environment | -25°C~+40°C, relative humidity ≤85% |
| Main Beam Structure | Single main beam or double main beam |
| Main Components | Lifting mechanism and trolley, main beam, support leg, end carriage, electric control box, operating system, safety protection system |
| Operation Site | Open-air operation sites and indoor workshops |
| Application 1 | Stations |
| Application 2 | Wharves |
| Application 3 | Warehouses |
| Application 4 | Construction sites |
| Application 5 | Cement product yards |
| Application 6 | Machinery or structural assembly yards |
| Application 7 | Power stations |
Key Features
One side supported by a ground leg and the other side running on an elevated runway
Suitable for open-air sites and indoor workshops
Can save production space compared with full gantry crane structures
Can reduce building column requirements compared with overhead crane systems
Available in BMH type and BMG type configurations
Can work with electric hoists or hoist trolleys according to handling needs
Support leg height difference can be designed according to civil construction requirements
Good rigidity, safety, reliability, and convenient installation
Suitable for loading, unloading, transportation, and structural assembly operations
Customized Crane Solution
Semi Gantry Crane can be customized according to workshop structure, existing runway system, ground track layout, lifting configuration, support leg height difference, and operating site requirements.
Available customization includes BMH or BMG crane type, single or double main beam structure, electric hoist or trolley configuration, support leg design, end carriage arrangement, electrical control system, operating system, and safety protection system.
- Customized BMH or BMG semi gantry crane configuration
- Customized single or double main beam structure
- Customized electric hoist or trolley arrangement
- Customized support leg height according to site construction
- Customized runway and ground track layout
- Customized electrical control and safety protection system
