Many small processing factories, equipment maintenance workshops and hardware warehouses are confronted with hoisting challenges: their plants are not pre-installed with overhead crane load-bearing beams, and installing an overhead travelling crane requires large-scale civil reconstruction with an investment of over 100,000 yuan, which incurs excessive costs; using forklifts to lift small materials occupies passageways and may easily collide with workpieces; fixed heavy gantry cranes cannot be moved, resulting in extremely poor site flexibility.
The English name for light-duty gantry crane, also known as mobile simple gantry crane, refers to a lightweight lifting equipment independently developed by Henan Mine for light-load and intermittent hoisting working conditions. It requires no embedded tracks and does not rely on roof load-bearing capacity, cost-effectively addressing the pain points of material handling in small and medium-sized workshops.
Four Major Pain Points of Ordinary Lifting Equipment, Solved All-in-One by Light Gantry Cranes
1. No overhead crane beams in the factory building lead to high renovation costs for installing overhead traveling cranes
Most newly built or old small workshops are not equipped with load-bearing steel beams for lifting purposes. Installing an overhead traveling crane requires roof reinforcement and rail laying, which involves dual investment in civil engineering and equipment. The construction period lasts more than half a month, placing an unaffordable financial burden on small and medium-sized enterprises.
Solution: Light Gantry Crane for Mining
It features an integral floor-mounted gantry structure that only requires a flat and hardened ground for operation, with no renovation of the factory's steel structure needed. Adopting a modular split design, the whole unit can be fully assembled within 2 hours after delivery and put into lifting work on the same day, saving over 100,000 RMB in civil engineering renovation expenses.
2. Fixed gantry cranes are immobile, resulting in low site utilization
Traditional rail-mounted gantry cranes can only travel along fixed rails, limiting their lifting coverage and making them incompatible after workshop workstation adjustments. Large gantry frames occupy fixed areas, preventing dense placement of materials and processing equipment and causing severe waste of warehouse space.
Solution: Light Gantry Crane for Mining

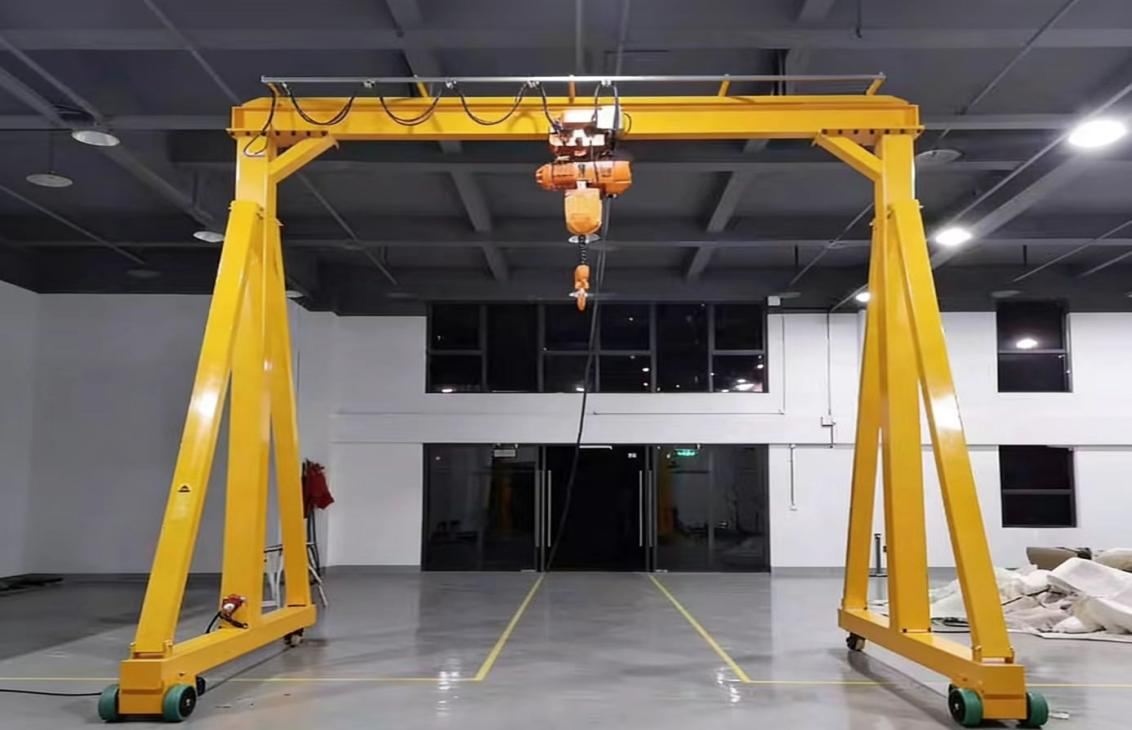

Standardly equipped with load-bearing universal casters with brakes, the whole machine can be pushed and repositioned by a single person, enabling flexible switching between any workshop workstation and outdoor temporary cargo yards. No dedicated transfer passages need to be reserved, allowing raw materials and machine tools to be densely stacked on the ground, boosting the storage capacity of the same factory space by 30%.
3. Forklift lifting of small workpieces easily causes collisions, leading to continuous losses from material damage
When machine tool molds, hardware castings and thin small stone slabs are transported by forklifts, concentrated stress at fork points and bumpy jolts easily cause edge chipping and surface scratches on workpieces. Meanwhile, long-term expenses on forklift fuel and driver labor keep operating costs high.
Solution: Light Gantry Crane for Mining

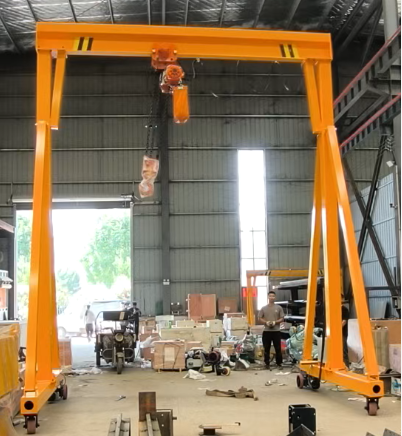

Matched with a small wire rope electric hoist for stable lifting, it adopts variable-frequency start and stop without impact, with vertical single-point stress that avoids squeezing workpieces. It can be remotely controlled by one person, eliminating the need for a full-time forklift driver and drastically cutting long-term labor and material loss costs.
4. No dedicated lifting equipment for temporary construction and maintenance workstations
Scenarios including emergency equipment repair, temporary loading/unloading at construction sites, and exhibition equipment disassembly have intermittent and irregular lifting demands. Purchasing heavy overhead traveling cranes results in extremely low utilization rates, and idle equipment ties up capital.
Solution: Light Gantry Crane for Mining

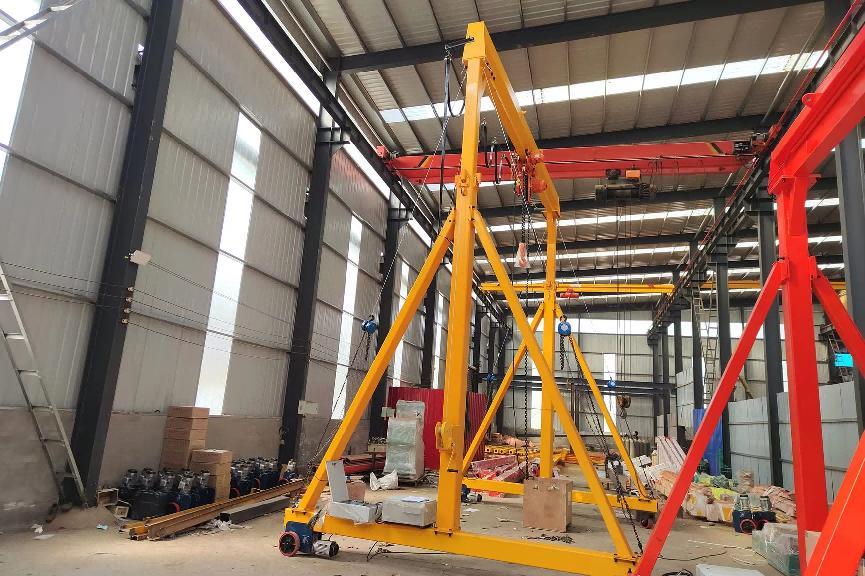

Lightweight and easy to disassemble and assemble, it can be split for storage without occupying space when not in use. It covers tonnages from 0.5 tons to 16 tons, with height-adjustable gantry legs optional as needed, suiting short-term working conditions such as maintenance of equipment of varying heights and temporary loading/unloading.
Five Core Advantages of Henan Mine Light Gantry Crane
1.Lightweight and Modular Structure for Easy Disassembly, Assembly and Transportation

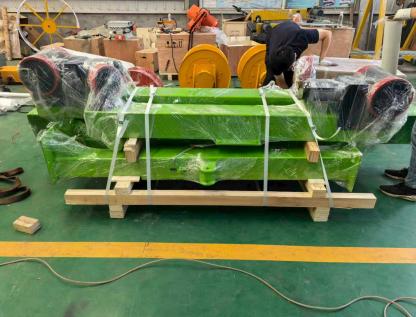

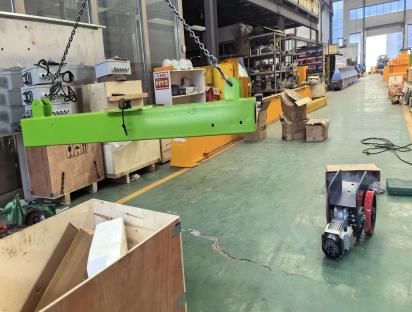

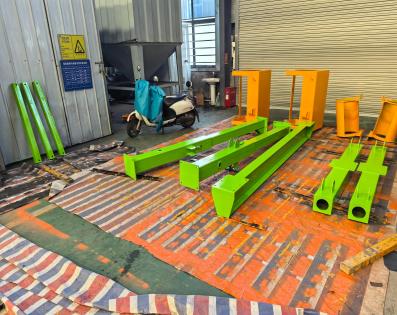

The main beam is welded with thickened I-beams, featuring low overall self-weight. The gantry is detachable in sections and transportable by small trucks. Assembly and disassembly can be completed by factory workers with simple tools without professional lifting teams.
2.Universal Lockable Casters for Flexible All-Range Operation

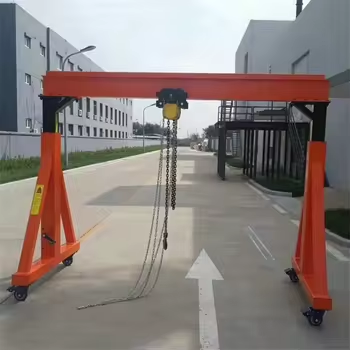

Heavy-duty polyurethane universal wheels with parking brakes are installed at the bottom of four support legs. They lock firmly after repositioning to prevent sliding or shifting during lifting, and can travel on indoor cement floors and flat outdoor hardened ground.
3.Full-Size Non-Standard Customization for Diverse Working Conditions
Covers tonnages of 1t/2t/3t/5t/8t/10t; gantry height and span can be adjusted on demand. Custom options include fixed type, height-adjustable lifting type and explosion-proof type, compatible with standard/explosion-proof electric hoists and wireless remote control systems.
4.Multiple Safety Protections with Compliant Qualifications for Smooth Acceptance
Comes standard with upper/lower lifting limiters, overload power-off protection, emergency stop buttons and caster locking devices. The whole machine holds a TSG Special Equipment Manufacturing License, with CE and ISO9001 certifications for export, enabling smooth acceptance by domestic safety supervision authorities and overseas projects.
5.Low Maintenance Cost and High Cost Performance, Ideal for Small and Medium Enterprises
Simplified structure with affordable, interchangeable wearing parts, resulting in far lower annual maintenance costs than overhead cranes and heavy gantry cranes. Its procurement cost for the same tonnage is 50% lower than fixed gantry cranes, allowing full recovery of equipment investment within 3 to 6 months.
Chloe
Tel: +86 18238799707 (Same number for WhatsApp)
Email:sales07@minehenancranes.com
FAQ
Q1: What ground condition is required for light duty gantry crane?
A: Flat hardened cement ground is needed; steel plates can be laid on soft mud ground. Sloped and pitted sites are not suitable.
Q2: Can we install explosion-proof hoist on this crane?
A: Yes, explosion-proof light duty gantry crane is customized for paint and chemical workshops with full flame-proof electrical components.
Q3: What is the warranty period?
A: 1-year full machine warranty, extended warranty for hoist core parts. Domestic after-sales team arrives within 48 hours; remote technical support for overseas customers.
