Henan Mine European-style wire rope electric hoists are designed in line with European FEM industrial standards. Their compact structure, low headroom, variable-frequency speed regulation, low operating noise and comprehensive safety protection make them a strong fit for modern lifting systems.
These hoists can be matched with overhead travelling cranes, gantry cranes and jib cranes for machinery manufacturing, automotive workshops, metal processing, logistics and other industrial applications. The integrated modular design replaces bulky traditional CD/MD-type hoists and improves workshop space utilization, lifting stability and continuous-operation durability.
Core Competitive Advantages
1. European FEM design for demanding markets
The hoists follow FEM 1Bm/FEM 2m working-class principles for high-frequency intermittent lifting. Compared with ordinary national-standard hoists, they provide better fatigue resistance, longer service life and more reliable load-bearing performance for industrial factories and export projects.

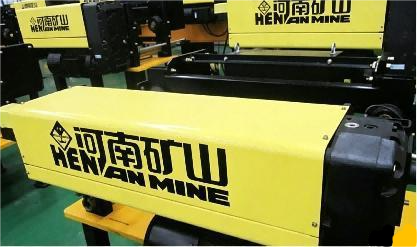

2. Ultra-compact size and low headroom
Headroom can be reduced by nearly 30% compared with traditional electric hoists. This is valuable for old factories, low-rise workshops and buildings with limited overhead space, because customers can gain effective lifting height without raising the roof or undertaking major structural renovation.

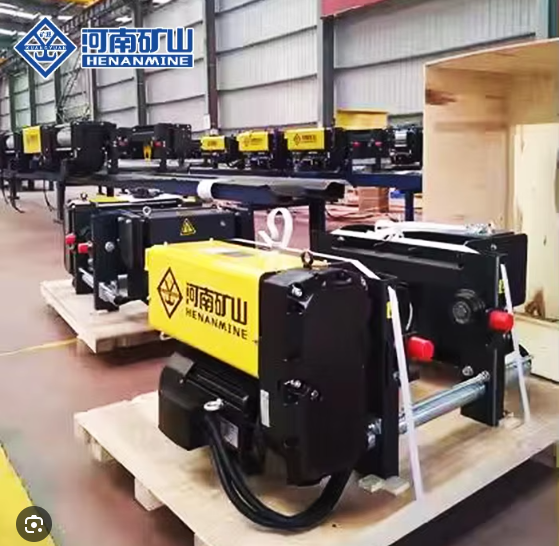

3. Variable-frequency stepless speed regulation
The European-standard variable-frequency system provides a low-speed range for precision assembly and a high-speed range for bulk material lifting. Smooth starting and stopping reduce workpiece swing and impact, while operating noise can be controlled to around 75 dB for food-processing and precision-equipment workshops.

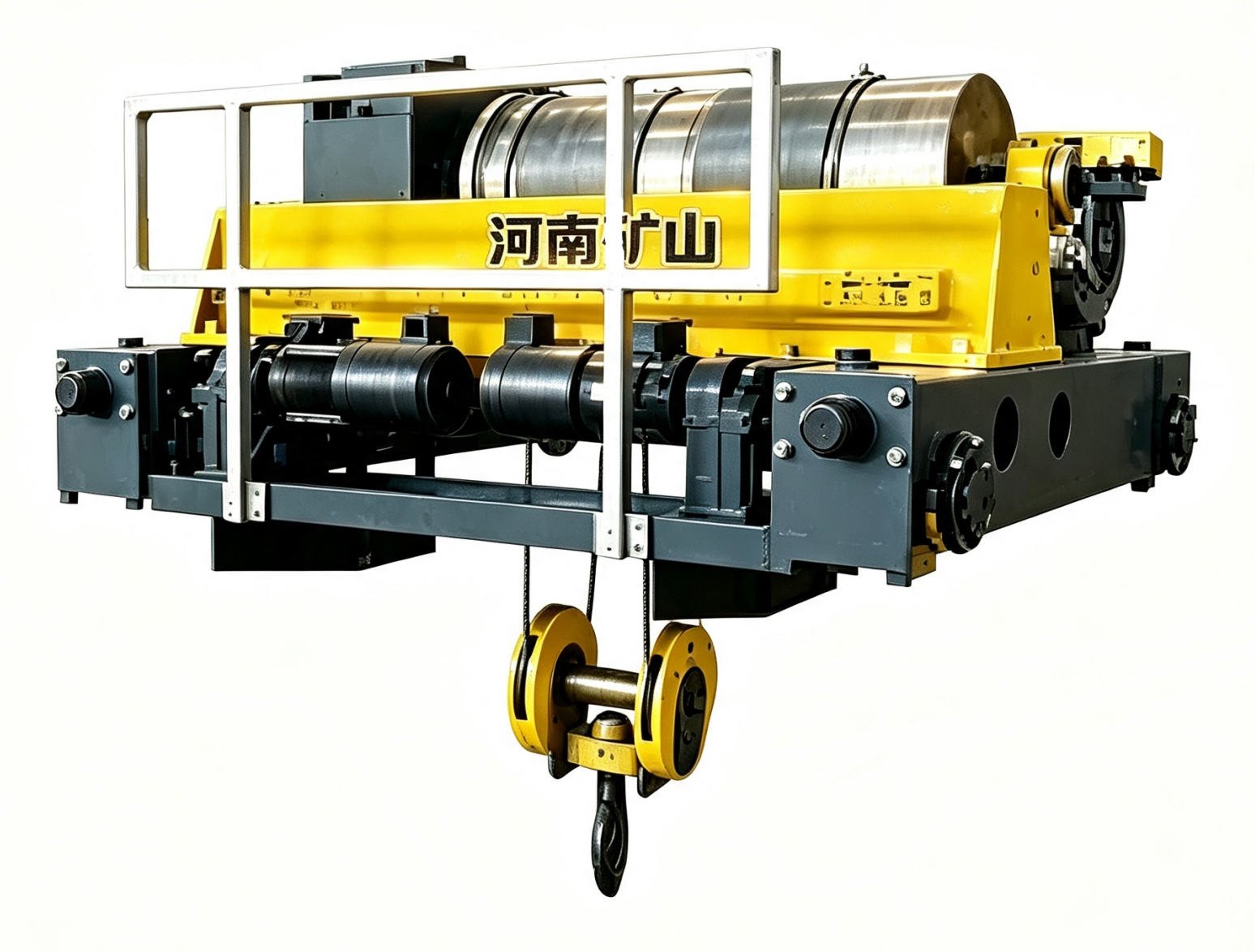

4. Dual braking and comprehensive safety protection
A main brake plus an auxiliary safety brake locks the load quickly during an unexpected power outage. Standard safety functions include overload protection, upper and lower lifting limits, travel limit switches, an emergency-stop button, phase-loss protection and overvoltage protection.
5. Mature manufacturing and global service
Henan Mine performs load tests, noise inspections and continuous-operation trials before delivery. Overseas customers receive technical support, installation guidance, operator training and spare-parts service backed by long-term crane manufacturing experience.

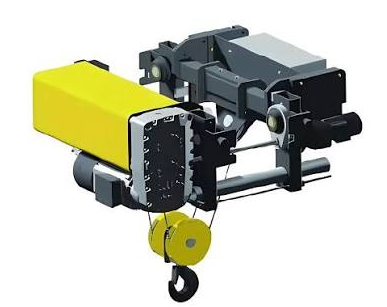

European Wire Rope Electric Hoist Technical Parameters
| Parameter Item | Standard Specification | Customized Scope |
|---|---|---|
| Rated lifting capacity | 5 t / 10 t / 20 t | 1-32 t |
| Standard lifting height | 6 m | 3-30 m |
| Working class | M5 | M5 / M6 / M7 / M8 |
| Control mode | Handle or remote control | Wired plus wireless remote dual control |
| Power supply | 380 V / 50 Hz / 3 Ph | Custom voltage available |
| Lifting speed | Variable-frequency adjustable | Fast/slow dual speed |
| Headroom | Low-headroom compact design | Extra-low headroom optional |
Main Application Scenarios
- Machinery manufacturing in Eastern Europe: Automotive-parts and hardware-processing workshops in Romania, Bulgaria and North Macedonia.
- Industrial plants in the Middle East: Machinery-maintenance and steel-processing factories in Iraq.
- Precision industry: Mould production, equipment assembly and instrument installation.
- Logistics and warehousing: Finished-product turnover and palletized goods handling.
- Metal industry: Loading, unloading and transport of steel coils and small steel components.
Get a Customized European Electric Hoist
If you are planning a workshop lifting renovation and need to choose between an overhead crane, gantry crane or jib crane, send Henan Mine your factory drawings and lifting requirements. Our engineers can recommend the right European wire rope electric hoist and provide an accurate quotation.
Contact: Chloe
Tel: +86 18238799707 (same number for WhatsApp)
Email: sales07@minehenancranes.com
FAQs
Can this European-style electric hoist be retrofitted onto an existing overhead bridge crane?
Yes. The hoist uses universal mounting dimensions and can directly replace many bulky old national-standard hoists without modifying the main bridge beam, making factory upgrading faster and more economical.
What is the difference between FEM and Chinese GB standard electric hoists?
FEM emphasizes fatigue resistance and continuous-operation capability, making it suitable for high-frequency lifting and longer service life. GB-standard hoists generally offer lower initial cost for low-frequency intermittent lifting and budget-focused applications.
Can the equipment work in humid and slightly dusty environments?
Yes. The motor and electrical control box use sealed dustproof and moisture-resistant structures for ordinary humid or dusty workshops. Anti-corrosion versions can be customized for chemical areas and coastal high-humidity environments.
