What Is a European-Style Hoist Trolley?

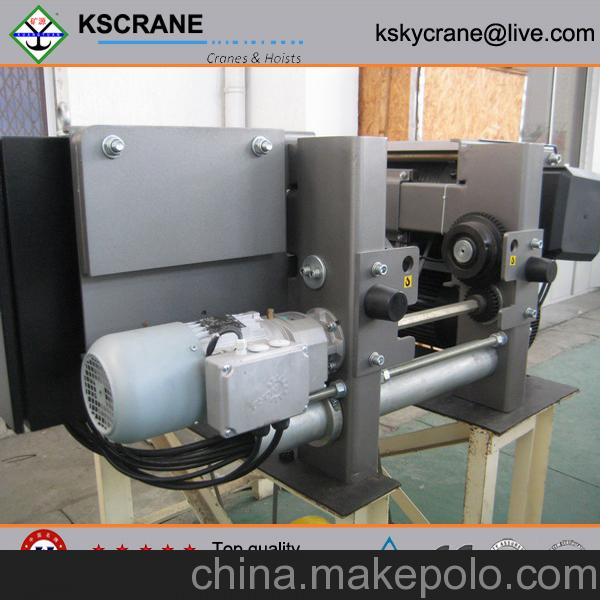

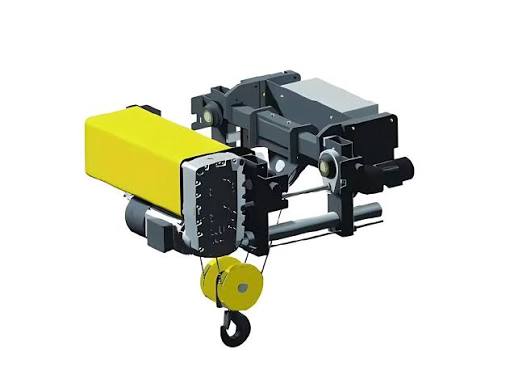

A European-style hoist trolley is an integrated travelling and hoisting assembly for overhead or bridge cranes. Different from conventional trolley structures, it adopts the European lightweight modular design concept, integrating three-in-one components: motor, electromagnetic brake and hard-tooth-surface reducer. It features compact size, light self-weight, low noise, reliable sealing and excellent heat dissipation.

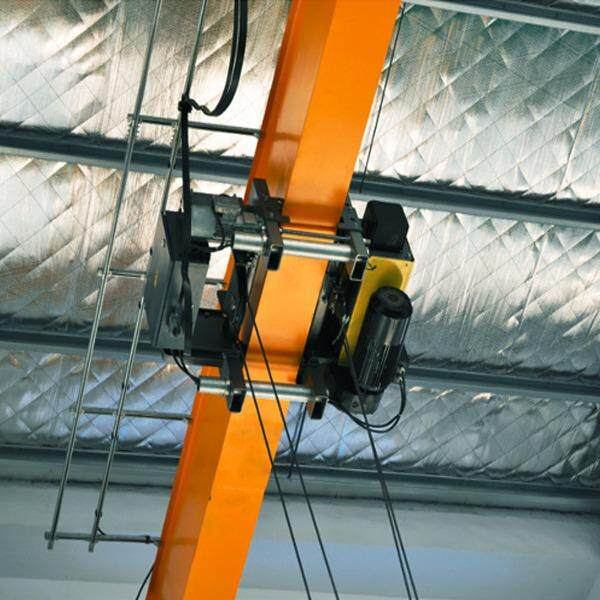

In hoisting operations of modern factories, space utilization, operational stability and long-term reliability are the core concerns of most plant managers. Conventional hoisting trolleys usually feature large overall dimensions, high failure rates and difficult maintenance, and fail to meet the high-standard production requirements of precision manufacturing, automated workshops and factories with limited floor height. The Henan Mine European-style hoisting trolley is a professional hoisting travel mechanism optimally designed for cranes. It is widely matched with European-style wire-rope electric hoists to realize low-noise travelling and material lifting operations.

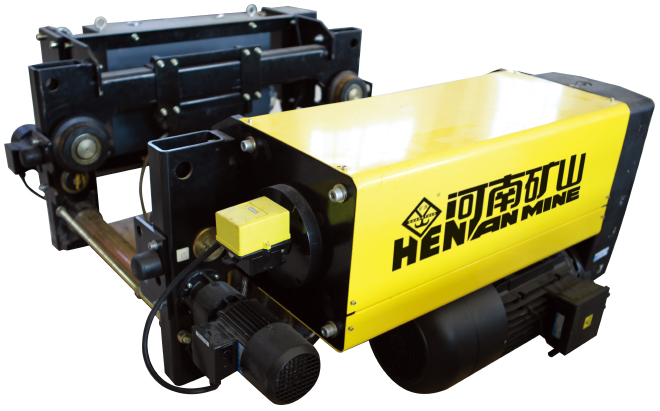

Core Advantages of Henan Mine European-Style Crane Trolley

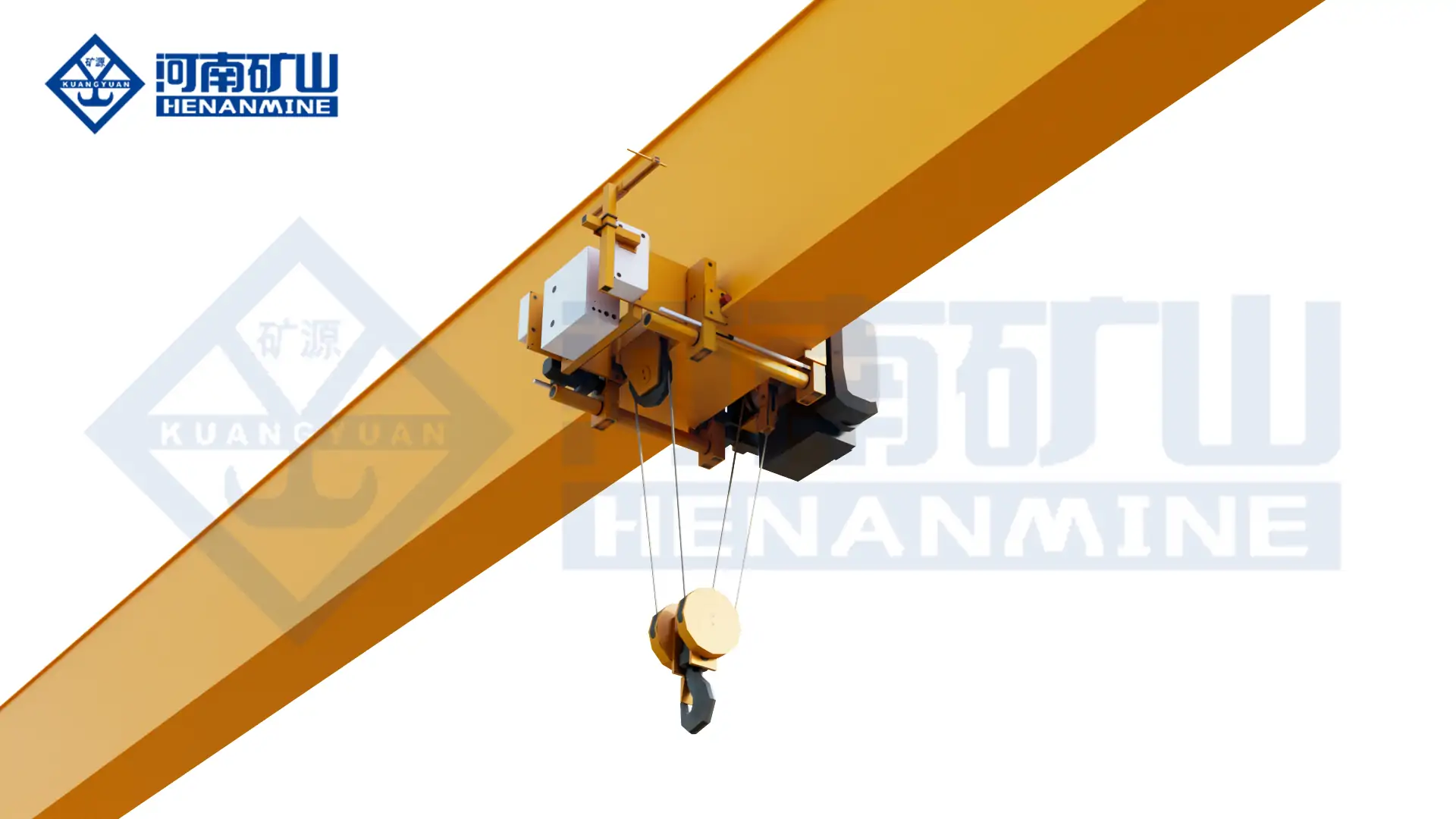

Compact Low-Headroom Design to Save Plant Building Height
The compact overall dimensions greatly reduce the required minimum lifting space, making it suitable for workshops with limited factory building floor-to-ceiling height and enabling the maximum lifting height under existing factory conditions.

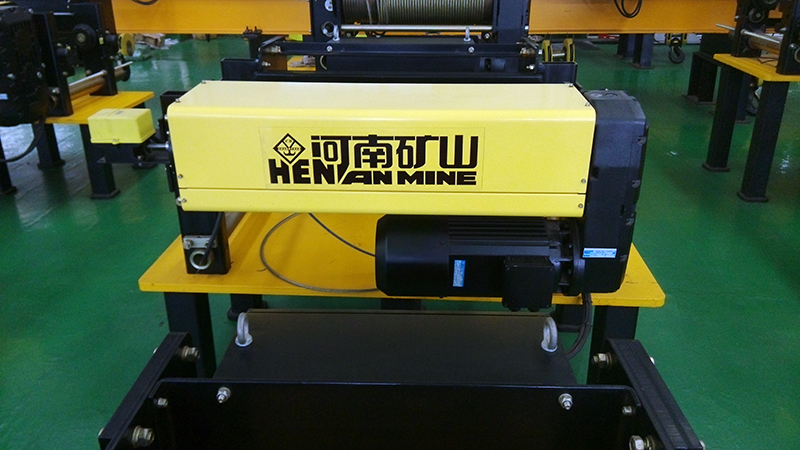

Runs Smoothly With Low Noise
Hard-tooth-surface reducers and variable-frequency operating motors deliver smooth start-stop performance, low impact and low operating noise. They are suitable for workshops with strict noise-reduction requirements, such as precision processing and electronics workshops.
Modular Structure for Easy Maintenance
The modular split-type design uses independent components, facilitating inspection, repair and replacement, shortening downtime for maintenance and reducing production losses for the factory.
Why Is the European-Style Hoist From Henan Mine More Cost-Effective?
Low energy consumption saves enough money in a year to buy a small piece of equipment. The extremely low failure rate makes maintenance costs almost negligible. Workshop utilization is directly improved, which is equivalent to gaining valuable factory space without raising the building.
Multi-layer safety protection provides double insurance for your production. It comes standard with overload protection, an anti-sway system, an anti-collision device and an emergency stop button. It even triggers an alarm for wire-rope slack.
The hook lifting has two fixed speed levels. The hoist adopts full variable-frequency control. The VFD enables soft start and soft stop with smooth lifting, lowering, acceleration and deceleration. It greatly reduces load swing, achieves precise positioning, and protects both the building steel structure and the lifted workpieces.

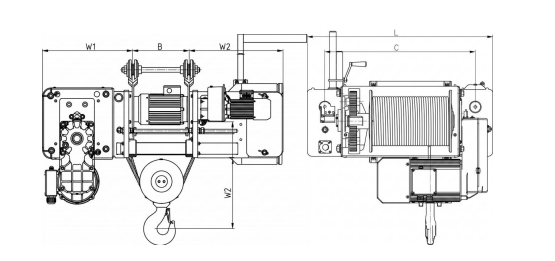

Technical Parameters
| Item | Parameter |
|---|---|
| Lifting Capacity | 3 t to 32 t |
| Lifting Height | 6 to 18 m |
| Lifting Speed | 5/0.8 m/min |
| Running Speed | 5 to 20 m/min |
| Control Mode | Pendant/Remote Control |
| Working Class | M5/M6/M7 |
Get a European-Style Hoist Trolley Solution
If you are planning a workshop hoisting renovation and are unsure whether an overhead crane or a semi-gantry crane is suitable for your factory building, you can directly contact Henan Mine. Provide your factory drawings to obtain exclusive hoisting solutions and accurate quotations.
Contact: Chloe
Tel: +86 18238799707 (same number for WhatsApp)
Email: sales07@minehenancranes.com
FAQs
What Information Do I Need to Provide to Get an Accurate Quotation?
To offer you precise solutions and quotations, please provide the rated lifting capacity, crane type (single-girder or double-girder), working class, power supply, as well as special requirements such as explosion-proof and anti-sway functions.
What After-Sales Support Do You Provide for Overseas Customers?
We supply complete sets of technical documents and operation and maintenance manuals. Remote technical guidance is available, and on-site overseas commissioning services can be arranged upon request.
What Is Your Delivery Lead Time?
Standard models generally take 15 to 25 working days. Details for customized solutions will be confirmed with you before order placement.
