Yacht Davit Crane
Yacht davit crane for lifting dinghies, motor boats, rescue boats, life rafts, and yacht cargo handling equipment.
- Arm Type
- Fixed / telescopic / folding
- Mount Options
- Pedestal base / standpipe mount
- Control Option
- Radio remote control
- Cable Option
- Fiber rope / galvanized steel cable
- Standards
- ISO / LY2 / LY3 / SOLAS
Product Overview

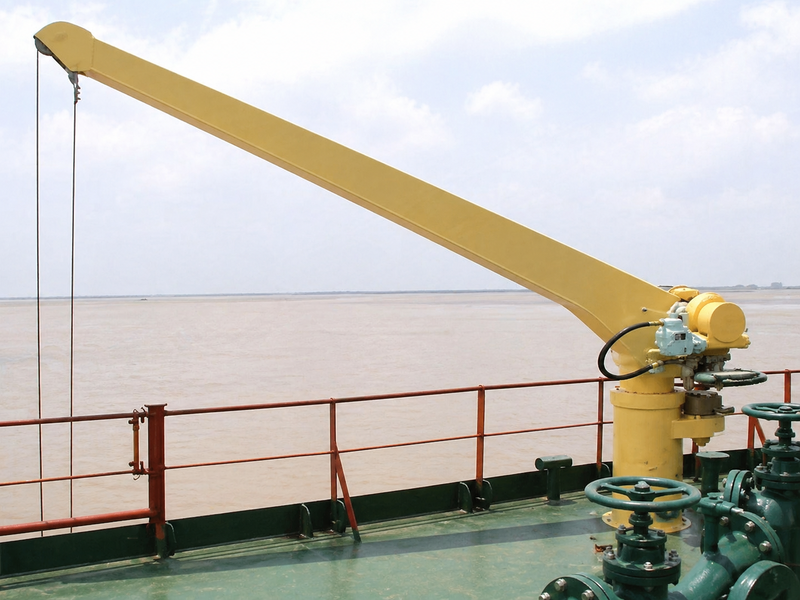

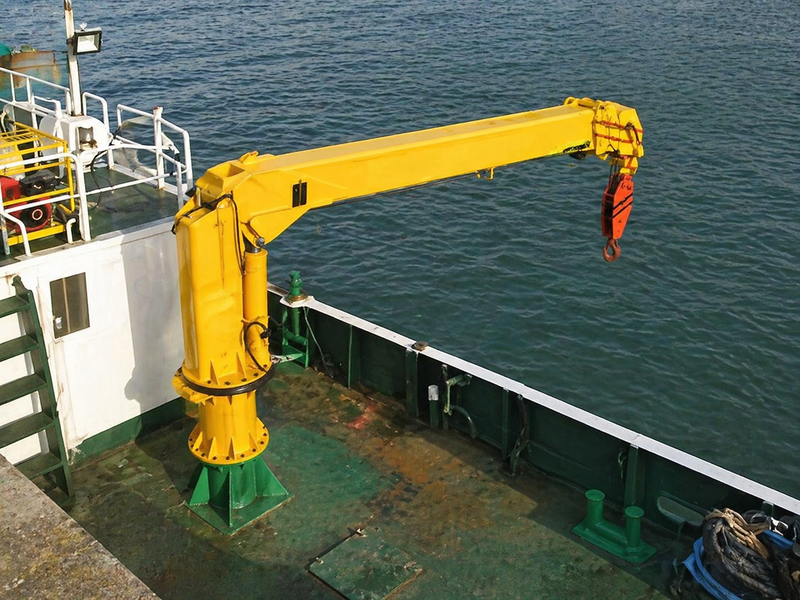

Yacht Davit Crane is designed for yacht and marine lifting applications. It is suitable for hoisting dinghies, motor boats, submarines, rescue ships, life rafts, and cargo handling equipment on yachts.
This crane can be used to lift equipment into the water or hoist it back to the dock. It is designed to match yacht deck layouts and can be arranged according to whether the crane needs to be visible or hidden from sight.
The crane is suitable for fishing, shipping, offshore entertainment, yacht operation, and marine rescue applications where compact deck layout, reliable lifting performance, and flexible operation are required.
For related marine lifting solutions, you can also view our Boat Hoist and Jib Crane category.

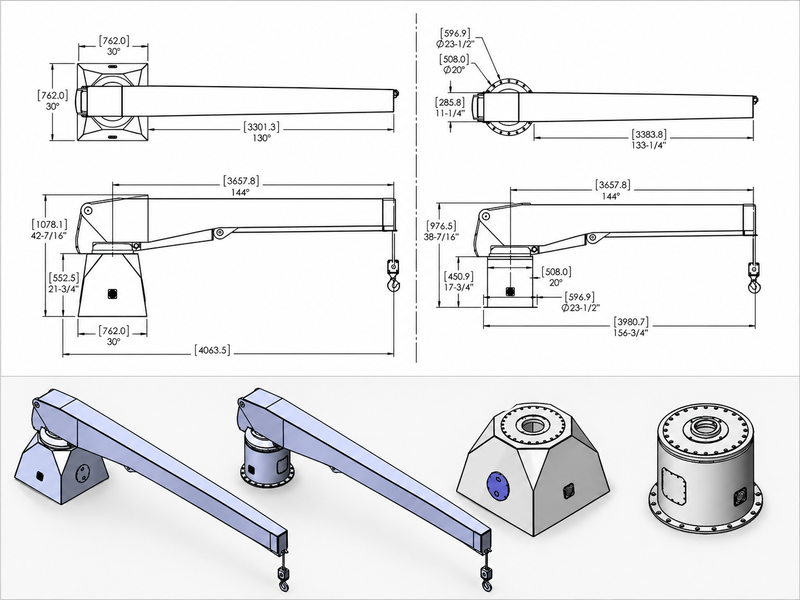

Technical Parameters
| Parameter | Whisper Davits | HJ Series | D Series | JS Series Mid Size | JS Series Heavy Duty | OU Series |
|---|---|---|---|---|---|---|
| Models | WD800 / WD1000 | E1000 | ES1000 / ES1500 / ES1750 | SM1500 / SM2000 | SM2500 / SM3000 | CT1500 / CT2000 / CT2500 / CT3000 / CT3500 / CT4000 / CT5000 / CT6000 / CT10000 |
| Hydraulic Functions | Hoisting | Hoisting / Luffing | Hoisting / Luffing / Rotation / Extension | Hoisting / Luffing / Rotation | Hoisting / Luffing / Rotation | Hoisting / Luffing / Rotation / Extension |
| Capacity Range | 800-1000 lbs / 363-454 kg | 1000 lbs / 454 kg | 1000-1750 lbs / 454-794 kg | 1500-2000 lbs / 680-907 kg | 2500-3000 lbs / 1134-1361 kg | 1500-10000 lbs / 680-4536 kg |
| Reach Range | 8 ft / 2.4 m | 10 ft / 3.0 m | 10-12 ft / 3.0-3.7 m | 9 ft / 2.7 m | 12 ft / 3.7 m | 16-20 ft / 4.9-6.1 m |
| Hoist Range | 17 ft / 5.2 m | 16 ft / 4.9 m | 16-20 ft / 4.9-6.1 m | 20 ft / 6.1 m | 24 ft / 7.3 m | 24-30 ft / 7.3-9.1 m |
| Retracted Length | N/A | 6 ft / 1.8 m | 6-7 ft / 1.8-2.1 m | 6.5 ft / 2.0 m | 8.3 ft / 2.5 m | 11-13 ft / 3.4-4.0 m |
| Weight Range | 215-235 lbs / 98-107 kg | 384 lbs / 174 kg | 384-630 lbs / 174-285 kg | 380-394 lbs / 172-179 kg | 790-800 lbs / 358-363 kg | 1050-4200 lbs / 476-1905 kg |
| Ideal Vessel Size |
Key Features
Suitable for dinghies, motor boats, rescue ships, life rafts, and cargo handling equipment
Can lift equipment into the water or hoist it back to the dock
Compact deck layout helps reduce occupied space
Suitable for yacht deck installation and marine handling work
Designed for durability, strength, and reliability
Can support flexible lifting operations in marine environments
High-quality surface treatment for yacht-grade appearance
Suitable for fishing, shipping, offshore entertainment, and rescue applications
Customized Crane Solution
Yacht Davit Crane can be customized according to yacht deck layout, lifting object type, working radius, lifting height, marine environment, and installation space.
Available customization includes boom structure, lifting mechanism, hydraulic system, deck installation layout, surface treatment, safety lighting, operation method, and yacht-specific lifting solution design.
- Customized yacht deck lifting layout
- Customized boom and lifting mechanism arrangement
- Customized hydraulic system configuration
- Customized solution for dinghy and rescue boat lifting
- Customized surface treatment for marine environments
- Customized design for visible or hidden yacht installation
You may also compare this product with Boat Hoist for different yacht and marina handling requirements.
