Jib Cranes
Wall Travelling Jib Crane
Wall travelling jib crane for long lateral material movement along workshop walls without occupying floor space or interfering with overhead cranes.
- Capacity
- Up to 5 ton
- Arm Length
- Up to 10 m
- Lifting Height
- Up to 20 m
- Work Duty
- M3-M5
- Rated Voltage
- 220V~690V, 50-60Hz, 3ph AC
- Control Mode
- Floor control / Remote control
Product Overview

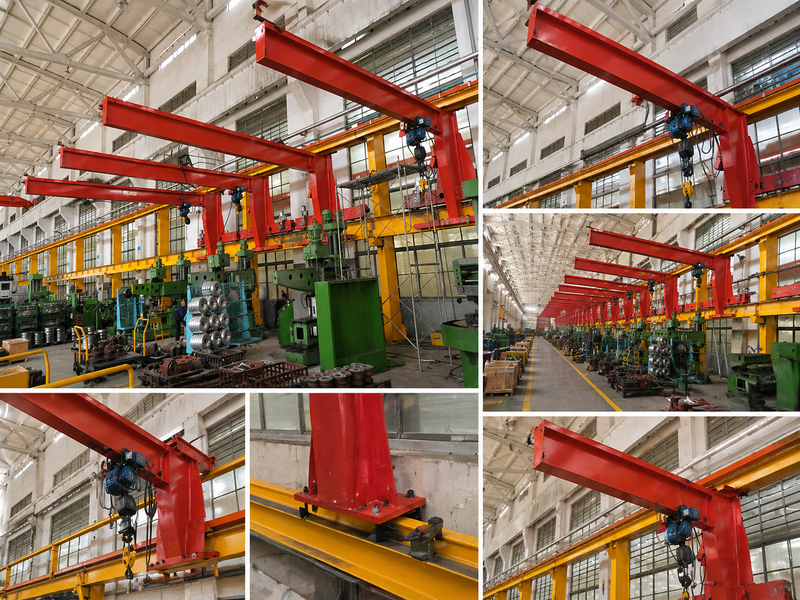

Wall Travelling Jib Crane is designed for long lateral material movement along workshop walls. It can help handle smaller lifting tasks quickly while keeping the floor area available for production, storage, or traffic routes.
The crane can serve several workstations arranged along the same line, making it suitable for production bays, assembly areas, and plant sections where localized lifting is required.
Its travelling jib structure works as an auxiliary lifting solution beside larger overhead crane systems, helping improve local material handling efficiency without interrupting main crane operations.

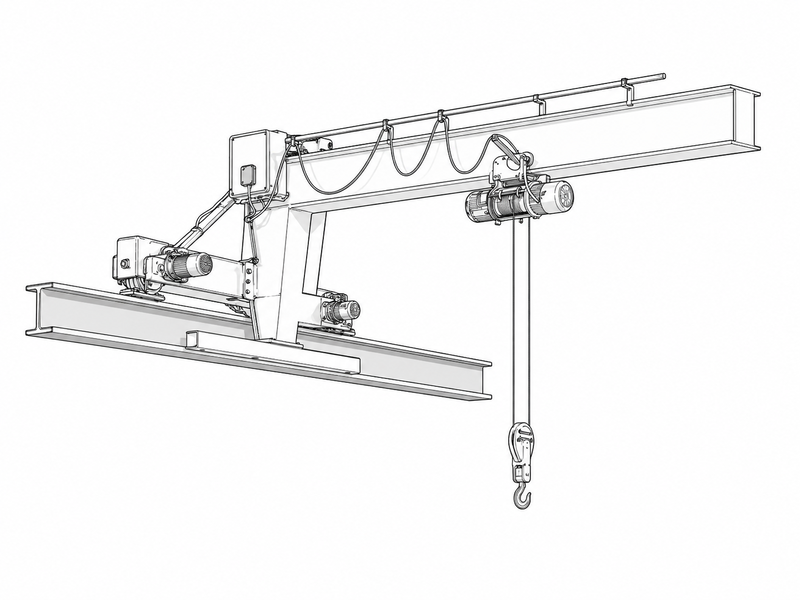

Technical Parameters
| Parameter | Reference Content |
|---|---|
| Motion Type | Slewing, long travel, hoisting |
| Operation Type | Manual operation or powered operation |
| Runway Length | No limitation |
| Working Coverage | Several workstations along the same line |
| Main Function | Long lateral movement of materials |
| Floor Space Requirement | No floor space occupied |
| Interference Condition | Does not interfere with large overhead cranes |
| Recommended Workplace | Low-ceiling plant and factory |
Key Features
Suitable for several workstations arranged in one line
Does not occupy floor space
Works without interfering with large overhead cranes
Low self-weight
High efficiency
High quality steel
Easy to install
Ideal for workplace crane applications
Suitable for low-ceiling plants and factories
Customized Crane Solution
Wall Travelling Jib Crane can be customized according to workshop layout, wall structure, runway arrangement, workstation distribution, operating method, and material handling requirements.
Available customization includes travelling runway arrangement, jib structure, manual or powered operation, hoist configuration, wall-side installation layout, control system, and auxiliary lifting solution design.
- Customized wall-side runway arrangement
- Customized jib structure for local lifting tasks
- Manual or powered operation options
- Customized hoist and travelling mechanism configuration
- Customized workstation coverage layout
- Customized auxiliary lifting solution for workshop production lines
