Jib Cranes
Wall Mounted Jib Crane
Wall mounted jib crane for space-saving material handling along walls, columns, and workstation areas.
- Capacity
- Up to 5 ton
- Arm Length
- Up to 10 m
- Lifting Height
- Up to 20 m
- Work Duty
- M3-M5
- Rotation Angle
- 120-360°
- Voltage
- 220V-690V, 50-60Hz, 3ph AC
Product Overview

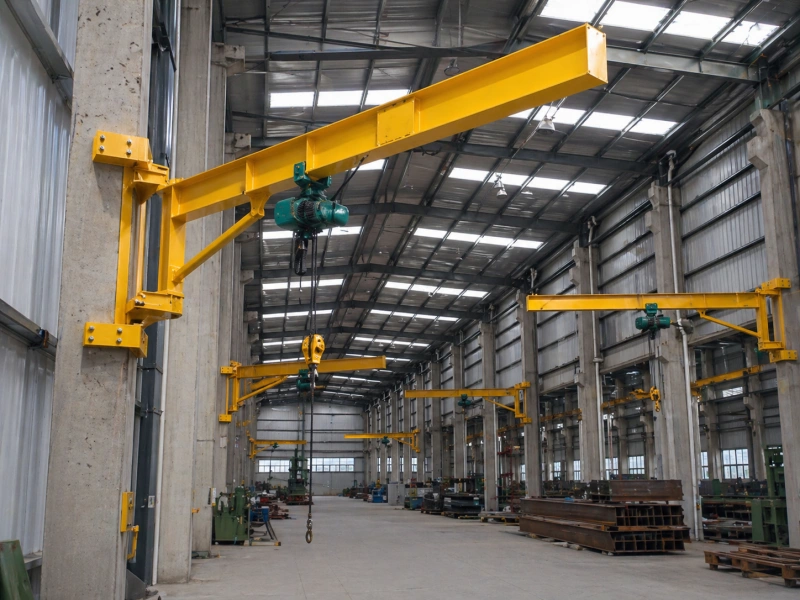

Wall Mounted Jib Crane is designed to be installed on a wall or structural column, helping users handle materials without occupying floor space or requiring a special foundation. It is suitable for workshops, warehouses, assembly lines, maintenance areas, and workstation lifting applications.
The crane provides convenient slewing and hoisting operation for small and medium loads. It can quickly handle local lifting tasks, improve plant productivity, and work as a practical complement to overhead cranes or gantry cranes in areas where floor-mounted lifting equipment is not convenient.
According to the working site, the jib crane can be configured with manual or electric slewing, floor control or remote control, different arm lengths, lifting heights, rotation angles, and electric hoist options.

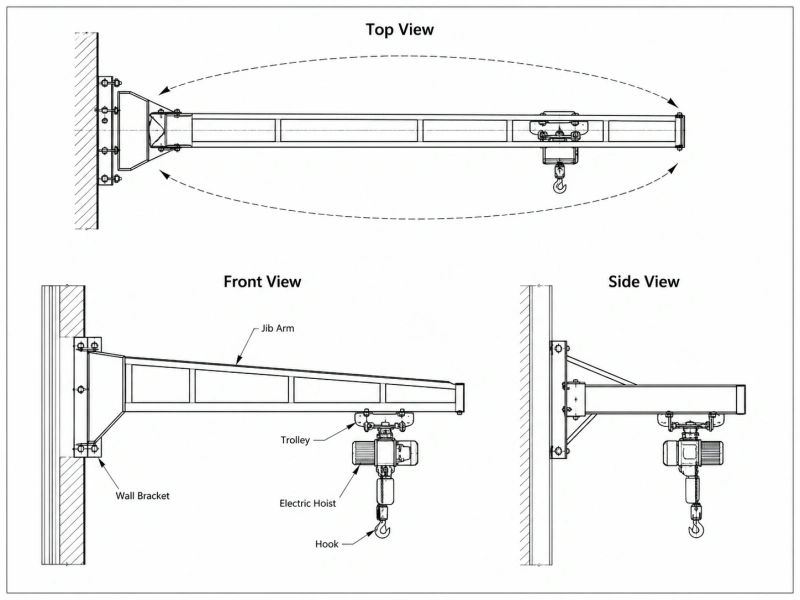

Technical Parameters
| Parameter | Wall Mounted Jib Crane |
|---|---|
| Capacity | Up to 5 ton |
| Arm Length | Up to 10 m |
| Lifting Height | Up to 20 m |
| Work Duty | M3-M5 |
| Rotation Angle | 120-360° |
| Rated Voltage | 220V-690V, 50-60Hz, 3ph AC |
| Crane Control Mode | Floor control / Remote control |
| Installation Type | Wall or column mounted |
| Use Scenarios | Workshops, warehouses, assembly lines, maintenance areas |
Key Features
No special floor foundation required
Suitable for workshops, warehouses, assembly lines, and maintenance stations
Can work as a complement to overhead cranes and gantry cranes
Manual or powered slewing options available
Floor control and remote control options available
Flexible arm length and lifting height configuration
Easy installation on suitable wall or structural column
Helps improve material handling efficiency for local lifting tasks
Customized design available according to site layout
Customized Crane Solution
Wall Mounted Jib Crane can be customized according to wall structure, column condition, lifting capacity, arm length, lifting height, rotation angle, hoist type, power supply, and control method.
Available customization includes manual or electric rotation, chain hoist or wire rope hoist configuration, floor control, remote control, wall bracket design, column mounting structure, arm length, coating color, and electrical system.
- Customized lifting capacity and arm length
- Customized lifting height and rotation angle
- Manual or electric slewing options
- Floor control or remote control options
- Wall mounted or column mounted installation
- Electric chain hoist or wire rope hoist configuration
- Customized color and surface treatment
