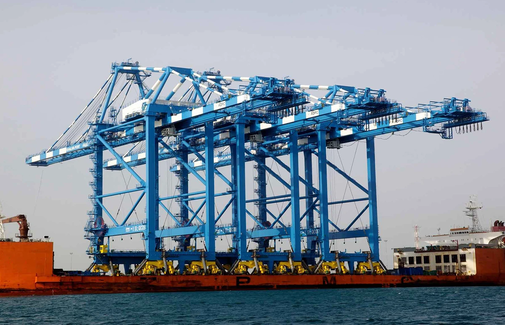

Ship To Shore Crane
Ship To Shore Crane (STS) is a high-capacity port crane designed for efficient container loading and unloading, offering long outreach, high speed, and reliable heavy-duty performance.
- Capacity
- 35t – 65t (under spreader)
- Span
- 16m – 30.48m
- Lifting Height
- Above rail: up to 62m Below rail: 12m – 20m
- Voltage
- 380V / 50Hz / 3 Phase (customizable)
- Working Duty
- Port outdoor operation, -20°C to +45°C
- Reference Price
- USD 500,000 – 3,000,000 (depending on configuration)
Product Overview

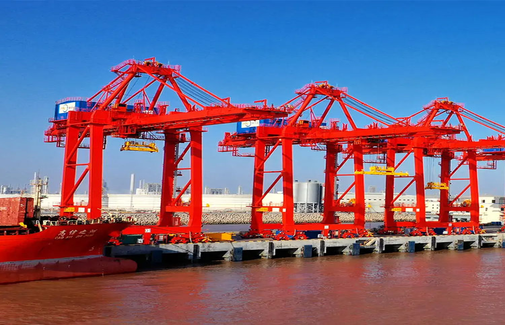

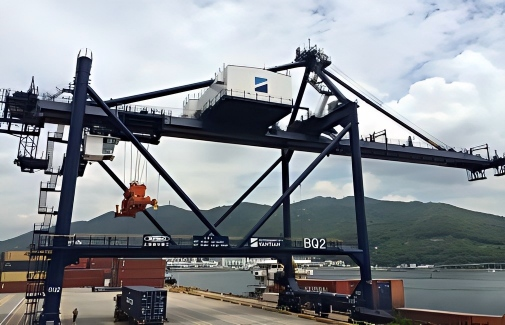

The Ship To Shore Crane (STS Crane) is a large-scale container handling system designed for loading and unloading containers between vessels and quayside. It is widely used in modern ports and container terminals for high-efficiency and high-capacity operations.
This crane adopts a robust gantry structure with a boom system, allowing it to reach over large container ships with extended front outreach and stable rear counterbalance. Equipped with a high-performance trolley and container spreader, it can handle 20’, 40’, and 45’ containers with precision and speed.
With advanced control systems and high-speed lifting and travelling mechanisms, the STS crane ensures fast cycle times, improved productivity, and reliable operation. Its heavy-duty design and intelligent automation capabilities make it an essential piece of equipment for modern container terminals.

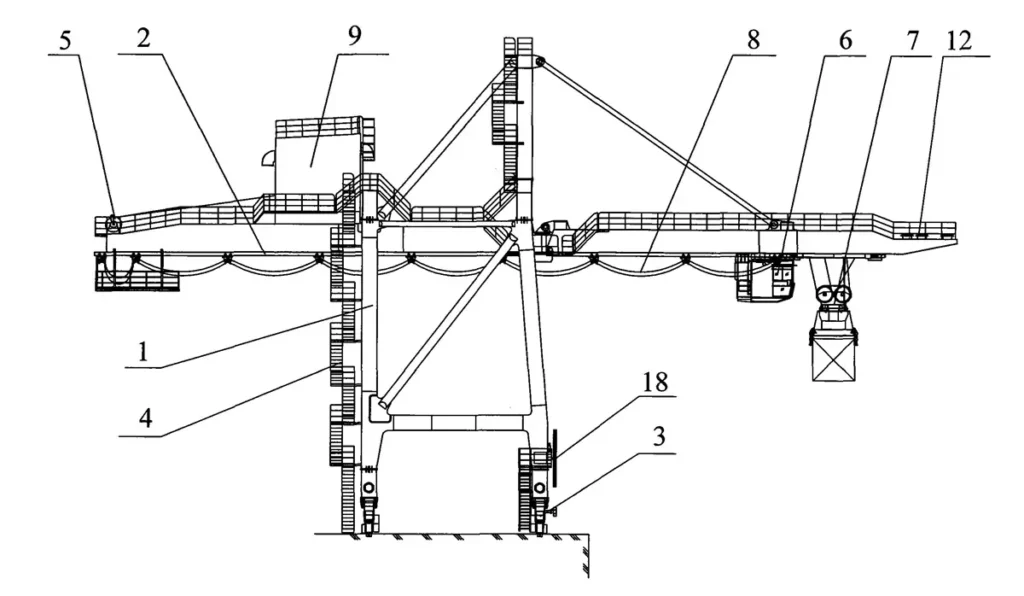

Technical Parameters
Technical Parameters
| Parameter | 35t | 41t | 51t | 65t |
|---|---|---|---|---|
| Rated Capacity (Under Spreader) | 35 | 41 | 51 | 65 |
| Rated Capacity (Under Hook) | 45 | 50 | 61 | 75 |
| Lifting Height Above Rail (m) | 37 / 25 | 50 / 35 | 58 / 40 | 62 / 42 |
| Lifting Height Below Rail (m) | 12 | 15 | 18 | 20 |
| Front Outreach (m) | 30 | 45 | 51 | 65 |
| Rear Outreach (m) | 10 | 15 | 15 | 25 |
| Rail Gauge (m) | 16 | 16 / 22 | 30.48 | 30.48 |
| Trolley Travel Distance (m) | 56 | 76 / 82 | 96.48 | 120.48 |
| Hoisting Speed Full Load (m/min) | 50 | 60 | 75 | 90 |
| Hoisting Speed No Load (m/min) | 120 | 120 | 150 | 180 |
| Trolley Travelling Speed (m/min) | 180 | 210 | 240 | 240 |
| Gantry Travelling Speed (m/min) | 45 | 45 | 45 | 45 |
| Boom Hoisting Time (min) | 5 | 5 | 5 | 5 |
Key Features
Long front outreach for handling wide ships
High lifting capacity under spreader and hook
High-speed hoisting and trolley travel for improved efficiency
Double girder gantry structure for stability
Advanced control system for precise positioning
Heavy-duty design for continuous port operation
Compatible with 20’, 40’, and 45’ containers
Strong adaptability to different terminal layouts
Optional automation and intelligent control systems
Customized Crane Solution
Henan Kuangshan Crane provides fully customized Ship To Shore crane solutions according to port terminal requirements. Key parameters such as lifting capacity, outreach length, lifting height, and rail gauge can be adjusted to match different vessel sizes and operational demands.
Optional configurations include automated control systems, remote operation, anti-sway technology, energy-saving drives, and intelligent terminal integration systems. Our engineering team ensures high efficiency, safety, and long-term reliability for port operations.
