RTG Rubber Tyred Container Gantry Cranes
RTG Rubber Tyred Container Gantry Crane is a flexible and high-performance lifting solution for container yards, offering mobile operation, efficient stacking, and reliable heavy-duty performance.
- Capacity
- 35 ton / 41 ton / 70 ton
- Span
- 23.47m / 26m
- Lifting Height
- 15.5m / 18.5m
- Voltage
- 380V / 50Hz / 3 Phase (or diesel generator)
- Working Duty
- Outdoor heavy-duty operation, -20°C to +45°C
- Reference Price
- USD 150,000 – 600,000 (depending on configuration)
Product Overview

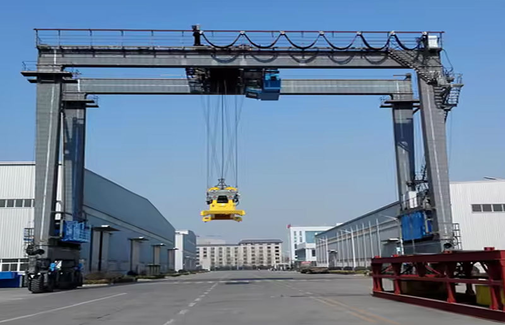

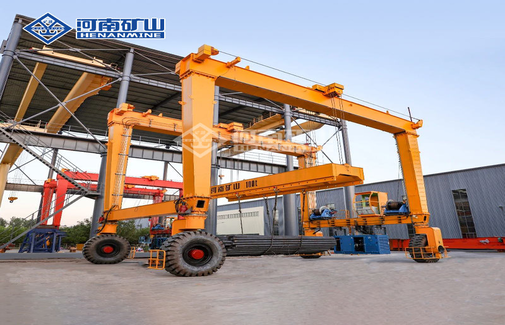

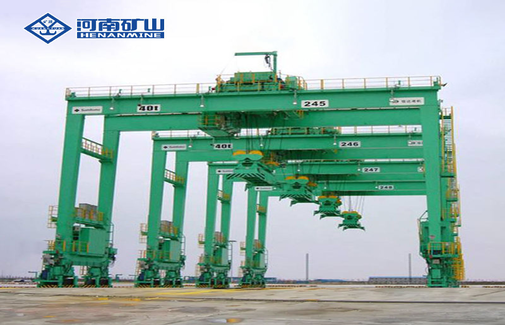

The RTG Rubber Tyred Container Gantry Crane is a high-efficiency container handling solution designed for container yards, ports, and logistics terminals. Unlike rail-mounted cranes, the RTG crane is equipped with rubber tyres, allowing flexible movement across the yard without the need for fixed rails.
This crane adopts a robust gantry structure combined with a high-performance trolley and container spreader, making it suitable for lifting 20’, 40’, and 45’ standard containers. It supports efficient stacking operations with up to 4–5 container layers, significantly improving yard utilization.
Powered by a diesel generator set or electric system, the RTG crane offers reliable performance in various working conditions. Advanced control systems ensure smooth operation, precise positioning, and high productivity. It is widely used in modern container terminals for flexible and high-capacity container handling.

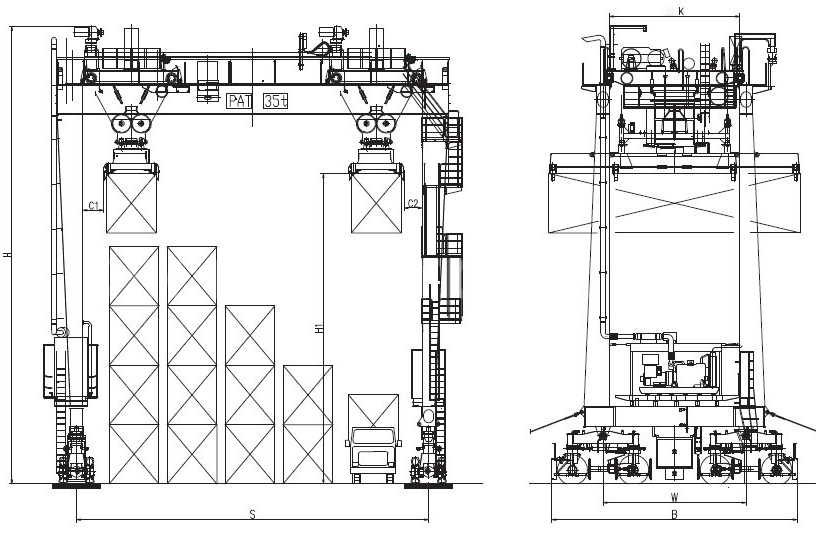

Technical Parameters
Technical Parameters
| Parameter | 35 ton | 41 ton | 70 ton |
|---|---|---|---|
| Rated Lifting Capacity | 35t | 41t | 70t |
| Span (m) | 23.47 / 26 | 23.47 / 26 | 23.47 / 26 |
| Base Distance (m) | 7 | 7 | 7.5 |
| Lifting Height (m) | 15.5 / 18.5 | 15.5 / 18.5 | 15.5 / 18.5 |
| Stack Layers | 4 / 5 | 4 / 5 | 4 / 5 |
| Container Type | 20’, 40’, 45’ | 20’, 40’, 45’ | 20’, 40’, 45’ |
| Hoisting Speed (m/min) | 20/40 | 25/50 | 25/50 |
| Gantry Travelling Speed (m/min) | 30/130 | 30/130 | 30/130 |
| Trolley Travelling Speed (m/min) | 70 | 70 | 70 |
| Wheel Numbers | 8 | 8 / 16 | 16 |
| Max Wheel Load (kN) | 300 | 320 / 180 | 200 |
| Power Supply | Diesel generator or 380V AC | Diesel generator or 380V AC | Diesel generator or 380V AC |
Key Features
Suitable for handling 20’, 40’, and 45’ containers
High stacking capability (4–5 layers) for efficient space utilization
Double girder gantry structure for stability and heavy loads
Diesel generator or electric power supply optional
High-speed hoisting and travelling for improved efficiency
Advanced control system for precise positioning
Suitable for continuous heavy-duty operations
Easy maintenance with modular design
Optional automation and remote control system
Customized Crane Solution
Henan Kuangshan Crane provides customized RTG crane solutions tailored to different container yard layouts and operational requirements. Key parameters such as lifting capacity, span, stacking height, and wheel configuration can be adjusted based on your project.
Optional configurations include hybrid power systems, fully electric RTG solutions, anti-sway systems, remote monitoring, and automated control systems. Our engineering team ensures high efficiency, energy saving, and long-term reliability.
