RMG Rail Mounted Container Gantry Cranes

RMG集装箱门式1
RMG集装箱门式4
RMG集装箱门式2
RMG集装箱门式3
项目图片
项目图片
项目图片
项目图片

Rail Mounted Container Gantry Crane (RMG) is a high-efficiency lifting solution designed for container handling, offering precise positioning, heavy-duty performance, and reliable operation in logistics and port environments.

  •   Rated Lifting Capacity: 30–50 ton
  •   Span: 18–35 (customizable)
  •   Lifting Height: 12.3–21 (customizable)
  •   Rated Voltage: 380V / 50Hz / 3 Phase
  •   Working Duty: A6–A8 heavy duty
  •   Reference Price Range:
  •   Application Fields: Ports, docks, railway freight stations, logistics centers
Send inquiry
send email
Description Parameter Features Customized

Description

The Rail Mounted Container Gantry Crane (RMG) is a high-efficiency lifting system specifically designed for container handling in ports, railway terminals, and logistics yards. It runs on rails and is equipped with a specialized container spreader for lifting 20’, 40’, and 45’ standard containers.

With a robust double girder gantry structure and advanced trolley system, the crane ensures stable operation, high lifting capacity, and precise positioning. It is ideal for container stacking, loading, and unloading operations in large-scale freight yards.

This RMG crane features variable frequency control for smooth speed regulation, improving operational efficiency and reducing mechanical wear. Equipped with high-performance motors and intelligent control systems, it provides reliable performance under continuous heavy-duty working conditions. Its modular design allows easy maintenance and long service life.

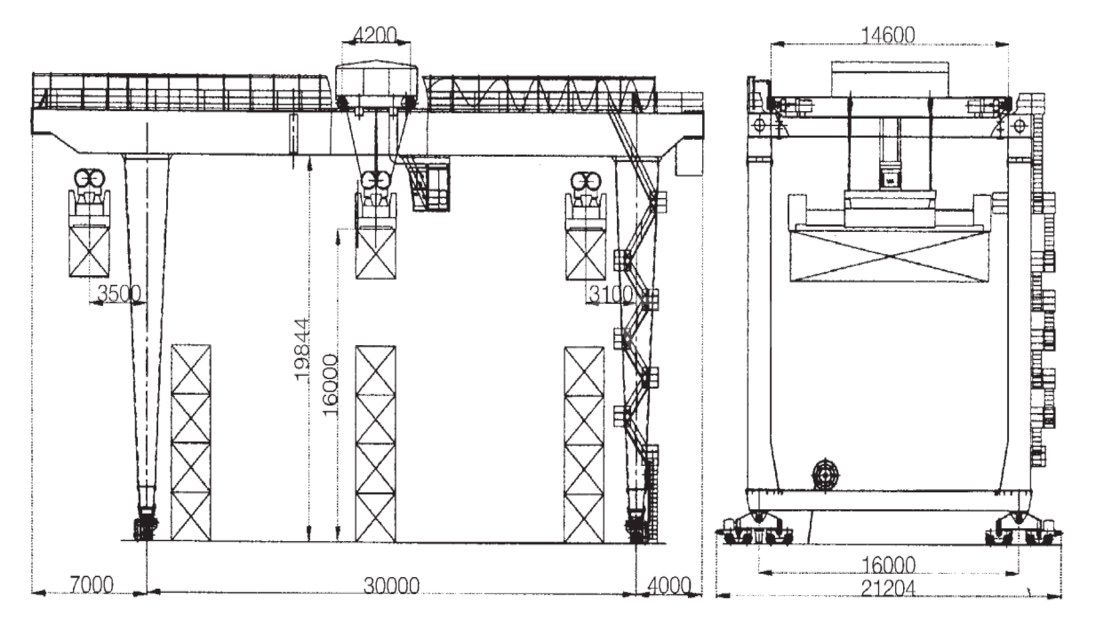

Parameter

Parameter
Parameter30 ton35 ton45 ton50 ton
Lifting Capacity30t container35t container45t container50t container
Span (m)18–3518–3518–3518–35
Lifting Height (m)12.3–2112.3–2112.3–2112.3–21
Lifting Speed (m/min)12.59.59.89.2
Trolley Speed (m/min)0–200–200–200–20
Crane Speed (m/min)0–300–300–300–30
Work DutyA6–A8A6–A8A6–A8A6–A8
Rail TypeQU80QU80 / QU100QU100 / QU120QU100 / QU120

Features

Designed for handling 20’, 40’, and 45’ standard containers Rail-mounted structure for stable and precise operation Double girder design for high load capacity and wide span Equipped with container spreader for efficient handling Variable frequency drive (VFD) for smooth speed control High working efficiency with fast lifting and travelling speeds Suitable for continuous heavy-duty operation (A6 duty) Easy maintenance with modular design Reliable performance in large-scale logistics environments

Customized

Henan Kuangshan Crane provides customized RMG container crane solutions tailored to different container yard requirements. Key parameters such as lifting capacity, span, lifting height, and stacking height can be adjusted based on your project.

Optional configurations include automated control systems, anti-sway technology, remote monitoring systems, and energy-saving VFD solutions. Our engineering team ensures optimal performance, safety, and efficiency for modern container handling operations.
