Port Cranes

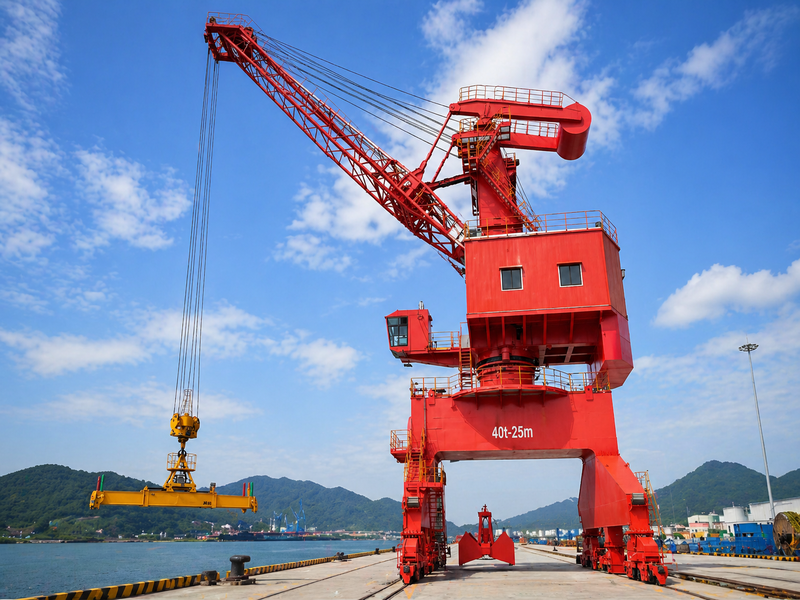

Harbour Portal Crane
Port portal lifting equipment for cargo loading, unloading, and transfer operations in harbours, wharves, yards, and terminal handling areas.
- Jib Structure
- Single boom / Four-link
- Drive Control
- Digital AC frequency conversion
- Speed Regulation
- PLC control
- Operation Modes
- Manual / Semi-automatic / Automatic / Remote
- Safety Options
- High wind alarm / Dynamic safety scanning
- Design Standards
- DIN / FEM / IEC / AWS / GB
Product Overview
Harbour Portal Crane, also known as port portal crane, is used in harbour, wharf, yard, and terminal handling areas for cargo loading, unloading, and transfer operations.
The crane is suitable for general cargo, bulk cargo, and container handling applications. It can help improve handling efficiency, maintain stable machine operation, and support different port cargo working conditions.
The equipment can be engineered according to dock layout, cargo type, working range, lifting tool, rail arrangement, and site operation requirements.

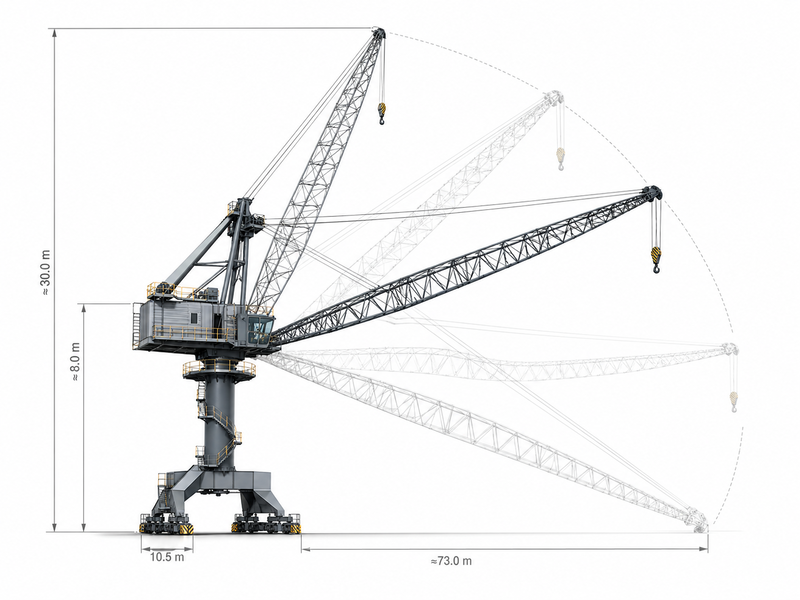

Technical Parameters
| Parameter | Reference Values |
|---|---|
| Hook Rated Lifting Capacity | 10 / 80t |
| Grab Rated Lifting Capacity | 10 / 16 / 25 / 40 / 60 / 40t |
| Lifting Height Above Rail | 20 / 25 / 25 / 28 / 30 / 35 m |
| Lifting Height Below Rail | 10 / 20 m |
| Max Working Range | 30 / 45 m |
| Min Working Range | 8.5 / 12 m |
| Tail Slewing Radius | 6.5 / 9.5 m |
| Rail Gauge | 10.5/12; 12/14/16 m |
| Base Distance | 10.5/12; 12/14/16 m |
| Hoisting Speed, Full Load | 40 / 30 m/min |
| Hoisting Speed, No Load | 60 / 50 m/min |
| Luffing Speed | 40 / 30 m/min |
| Slewing Speed | 1 / 1.2 / 1.5; 0.8 / 1 r/min |
| Crane Traveling Speed | 25 / 30 m/min |
| Maximum Wheel Load | 250 / 300 |
| Installed Capacity | 350 kW |
Key Features
Designed for general cargo, bulk cargo, and container loading operations
Can support loading, unloading, and transfer between ships and vehicles
Stable machine operation for port handling environments
Rope stabilizing device helps reduce spreader swing
Coordinated operation technology available for multi-crane handling
Automatic fault detection and real-time data display available
Energy-saving feedback technology available for electrical systems
Customized lifting tool and port handling configuration available
Customized Crane Solution
Harbour Portal Crane can be customized according to cargo type, dock layout, rail arrangement, working range, lifting tool, operating frequency, and environmental conditions.
Available customization includes lifting mechanism, luffing system, slewing mechanism, traveling mechanism, cargo handling attachment, operator cabin arrangement, access platform, electrical system, and protection system.
- Customized cargo handling attachment
- Customized working range and dock layout adaptation
- Customized hoisting, luffing, slewing, and traveling mechanisms
- Customized operator cabin and access platform arrangement
- Customized electrical and monitoring system
- Customized anti-wind and safety protection configuration
