Overhead Cranes
European Single Girder Overhead Crane
European Single Girder Overhead Crane is a compact and energy-efficient lifting solution designed for light to medium-duty industrial applications with precise control and reliable performance.
- Capacity
- 1 ton – 12.5 ton
- Span
- 7.5m – 25.5m
- Lifting Height
- ≥6m (customizable)
- Voltage
- 380V / 50Hz / 3 Phase (customizable)
- Working Duty
- Indoor industrial use, -20°C to +40°C
- Reference Price
- USD 3,000 – 15,000 (depending on configuration)
Product Overview
The European Single Girder Overhead Crane is a modern lifting solution designed with advanced European technology, offering high efficiency, compact structure, and energy-saving performance. Compared with traditional single girder cranes, it features optimized design, lighter dead weight, and improved working efficiency.

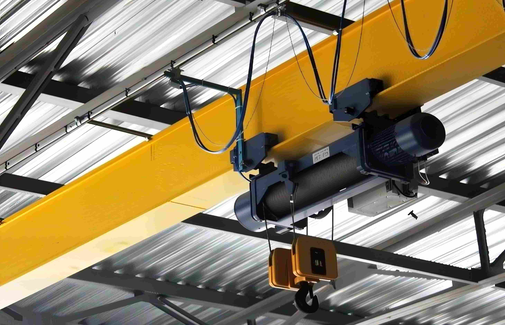

This crane is equipped with an electric hoist mounted on the main girder, providing smooth lifting, precise positioning, and stable operation. With its compact headroom design, it allows higher lifting height and maximizes workspace utilization.
Widely used in workshops, warehouses, manufacturing plants, and logistics centers, the crane is suitable for light to medium-duty material handling tasks. Its modular design ensures easy installation, convenient maintenance, and long service life.

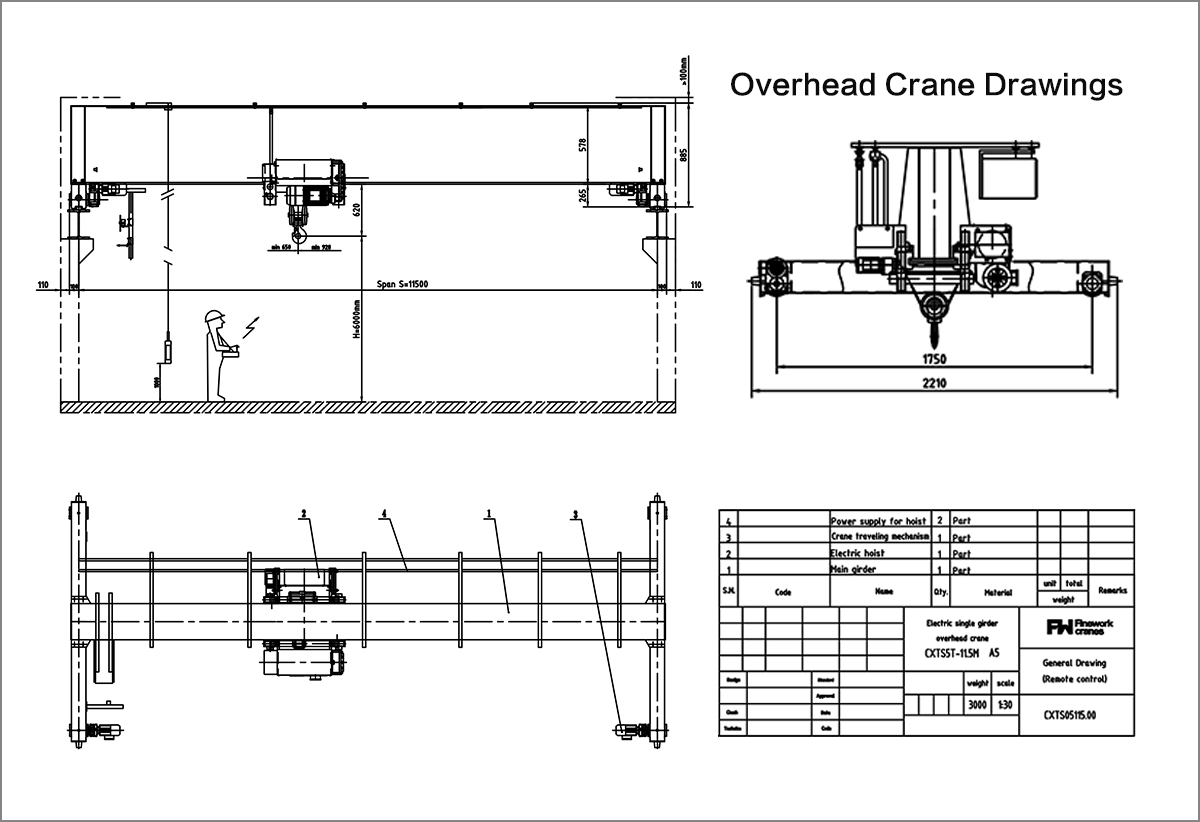

Technical Parameters
Technical Parameters
| Parameter | 7.5m | 10.5m | 13.5m | 16.5m | 19.5m | 22.5m | 25.5m |
|---|---|---|---|---|---|---|---|
| Capacity | 1–12.5t | ||||||
| Max Wheel Load (kN) | 13.5–90.94 | ||||||
| Rail Type | P24–P43 | ||||||
| Trolley Weight (kg) | 405–740 | ||||||
| Lifting Speed (m/min) | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 |
| Lifting Height (m) | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 |
| Trolley Speed (m/min) | 2–20 | 3–20 | 2–20 | 2–20 | 2–20 | 2–20 | 2–20 |
| Crane Speed (m/min) | 3–30 | 3–30 | 3–30 | 3–30 | 3–30 | 3–30 | 3–30 |
| Total Power (kW) | 4.31 | 4.31 | 4.31 | 4.31 | 4.67 | 4.67 | 4.67 |
| Total Weight (kg) | 1781–12086 | ||||||
| Work Duty | M5 | ||||||
Key Features
Compact headroom design for higher lifting height
Smooth and precise lifting with electric hoist system
Energy-saving and low noise operation
Stable performance with reduced wheel load
Suitable for light to medium-duty applications (M5)
Easy installation and low maintenance cost
Flexible control options: pendant or remote
Durable structure with long service life
Customizable design for different industrial needs
Customized Crane Solution
Henan Kuangshan Crane provides customized European single girder crane solutions tailored to different industrial environments. Key parameters such as lifting capacity, span, lifting height, and control systems can be adjusted according to your specific requirements.
Optional configurations include variable frequency drive (VFD), anti-corrosion coatings, explosion-proof design, and intelligent control systems. Our engineering team ensures high efficiency, safety, and long-term reliability.
Get a Factory-Based Quotation
Send your capacity, span, lifting height and working site. Our team will help check the suitable crane type and provide a project-based quotation.
Parameter Check
We review capacity, span, lifting height, duty and site conditions before recommending a configuration.
Factory Configuration
Quotation is based on crane structure, hoist or trolley type, control system and safety options.
Export Support
Discuss packing, delivery reference, drawings and project communication for overseas orders.
What We Need
- Capacity, span, lifting height and working duty.
- Workshop or yard layout, runway condition and power supply.
- Working environment, daily operation time and special requirements.
- Destination country, quantity and drawings or photos if available.
How It Works
- Send parametersShare the project data you already know.
- Confirm configurationWe check crane type and key technical scope.
- Receive quotationGet factory-based price and selection support.
