QC Electromagnetic Overhead Crane with Lifting Magnet
QC Electromagnetic Overhead Crane with lifting magnet is designed for efficient handling of steel scraps, billets, cast iron blocks, pig iron blocks, steel balls, and other magnetic metal materials.
Product Overview

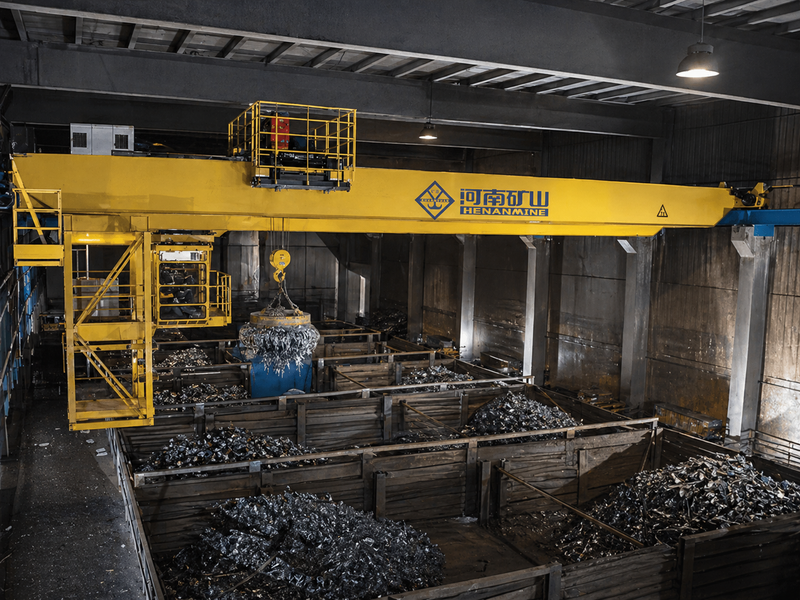

QC Electromagnetic Overhead Crane with lifting magnet is designed for heavy-duty handling of magnetic metal materials in steel mills, foundries, scrap yards, metal processing workshops, storage areas, and production plants. It is suitable for lifting and transferring steel scraps, billets, cast iron blocks, pig iron blocks, steel balls, machining chips, and other ferromagnetic materials.
This Electromagnetic Overhead Crane uses an electromagnetic lifting device as the main load handling tool. After the magnet is energized, it attracts suitable metal materials and moves them to the required position for loading, unloading, sorting, stockpiling, or workshop transfer. For frequent metal handling operations, this lifting method helps reduce repeated rigging work and improves material handling efficiency.
The QC series adopts a bridge crane structure with stable crane travelling, trolley travelling, and hoisting movement. Available model groups include QC 5-10t, QC 16/3.2-20/5t, and QC 32/5-50/10t. The span range covers 10.5-31.5m, and the work duty is A6. Larger models can be configured with main and auxiliary hoists according to different lifting and positioning requirements.
The crane can be customized according to rated load, span, lifting height, handled material, magnet type, workshop clearance, rail condition, operating frequency, and control method. The magnetic lifting performance should be matched with the material shape, contact area, surface condition, temperature, and magnet configuration.
For related lifting equipment, you can also view Overhead Cranes, Gantry Cranes, and Electric Hoists. For crane safety reference, you may check the OSHA Overhead and Gantry Cranes Safety Standard.

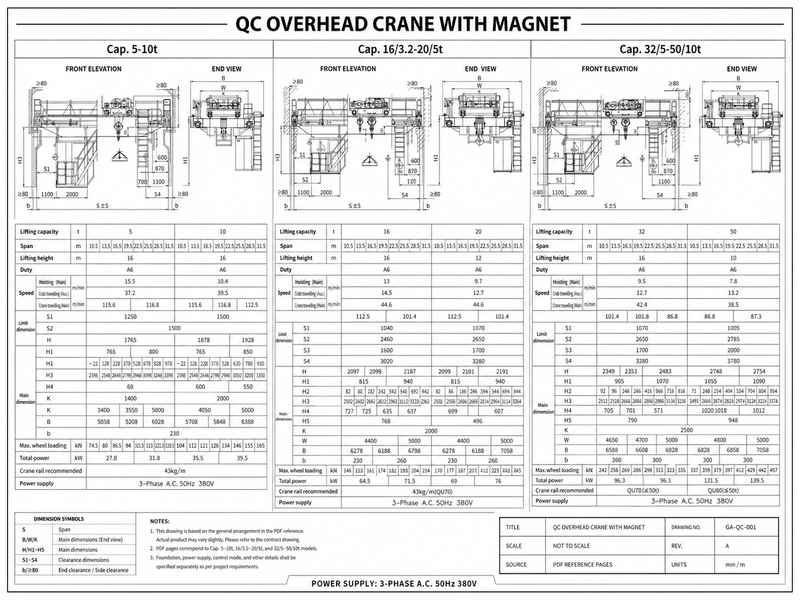

Technical Parameters
| Parameter | QC 5-10t | QC 16/3.2-20/5t | QC 32/5-50/10t |
|---|---|---|---|
| Capacity | 5t / 10t | Main 16t / 20t; Aux. 3.2t / 5t | Main 32t / 50t; Aux. 5t / 10t |
| Span Range (m) | 10.5-31.5 | ||
| Lifting Height (m) | 16 | Main 16 / 12; Aux. 18 / 14 | Main 16 / 12; Aux. 18 / 16 |
| Work Duty | A6 | ||
| Hoisting Speed (m/min) | 15.5 / 10.4 | Main 13 / 9.7; Aux. 14.5 / 12.7 | Main 9.5 / 7.8; Aux. 12.7 / 13.2 |
| Crab Travelling Speed (m/min) | 37.2 / 39.5 | 44.6 | 42.4 / 38.5 |
| Crane Travelling Speed (m/min) | 112.5-116.8 | 101.4-112.5 | 86.8-101.8 |
| Recommended Crane Rail | 43kg/m | 43kg/m or QU70 | QU70/90 or QU80/100 |
| Power Supply | 3-Phase A.C. 50Hz 380V | ||
Key Features
Suitable for steel scraps, billets, cast iron blocks, pig iron blocks, steel balls, and machining chips
QC overhead bridge crane structure for workshop and storage yard material transfer
Main and auxiliary hoist configurations available for larger capacity models
A6 work duty suitable for frequent industrial lifting applications
Model selection can be based on lifting capacity, span, lifting height, rail condition, and magnet type
Suitable for steel mills, foundries, scrap yards, metal processing workshops, and storage facilities
Custom configuration available according to material type, workshop layout, and operating requirements
Customized Crane Solution
QC Electromagnetic Overhead Crane with lifting magnet can be customized according to the handled material, lifting process, workshop layout, runway condition, and operating environment.
Available customization may include crane structure, span design, lifting height, main and auxiliary hoist arrangement, lifting magnet selection, trolley configuration, crane travelling mechanism, electrical control system, and power supply arrangement. For magnetic metal handling projects, the crane should be selected according to the actual load condition, material shape, magnetic contact area, working frequency, and site environment.
- Customized crane structure according to workshop layout
- Customized lifting magnet according to handled material
- Customized main and auxiliary hoist arrangement for larger models
- Customized trolley and crane travelling configuration
- Customized rail selection according to project condition
- Customized electrical control and power supply arrangement after confirmation
- Customized solution for steel mills, foundries, scrap yards, and metal workshops
Before final quotation, please confirm handled material, maximum load, lifting frequency, lifting magnet type, workshop clearance, runway rail condition, control method, and power supply requirement.
