Overhead Cranes
Electromagnetic Overhead Crane with Magnet Beam
Electromagnetic overhead crane with magnet beam for long steel material handling in steel plants, storage yards, and heavy industrial workshops.
- Capacity
- 15t-40t
- Span Length
- 19.5-34.5m
- Lifting Height
- 15m, 16m, etc.
- Work Duty
- A6, A7
- Rated Voltage
- 380V, 50-60Hz, 3ph AC
- Work Environment
- -20°C to +40°C, RH ≤85%
Product Overview
Electromagnetic Overhead Crane with Magnet Beam is designed for handling long steel materials in steel plants, storage yards, and heavy industrial workshops. It uses a magnetic lifting beam system to improve steel material handling efficiency and reduce manual binding work.
The crane can be configured with different hanging beam arrangements according to the shape, length, and handling direction of the material. It is suitable for moving steel plates, sections, bars, pipes, wires, and coils in production, storage, and loading operations.
According to working requirements, the lifting beam can be arranged in fixed or rotating forms to match different material handling processes and workshop layouts.

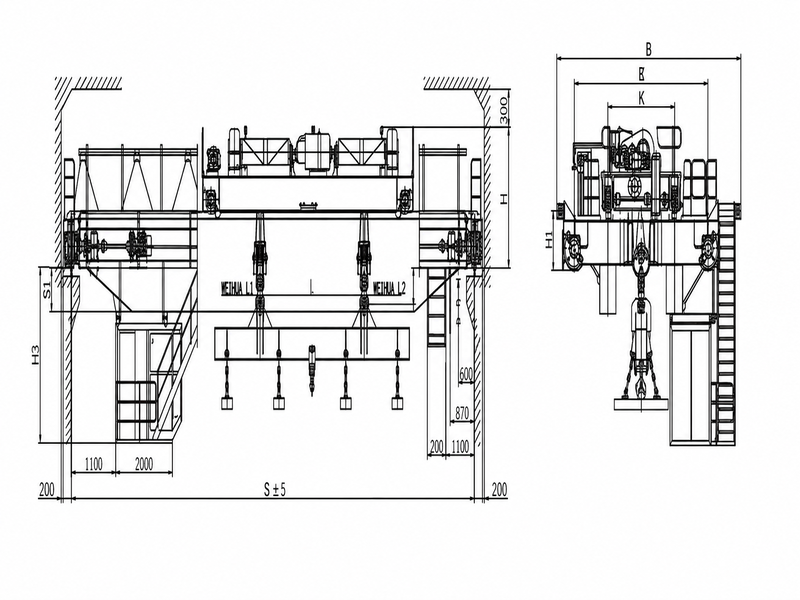

Technical Parameters
| Parameter | Reference Content |
|---|---|
| Lifting Tool | Electromagnetic chuck |
| Hanging Beam Direction | Parallel or perpendicular to the main beam |
| Handled Materials | Steel plates, sections, bars, pipes, wires, coils |
| Structural Form 1 | Hanging beam parallel to the main beam |
| Structural Form 2 | Hanging beam perpendicular to the main beam |
| Structural Form 3 | Upper rotating beam overhead crane |
| Structural Form 4 | Lower rotating beam overhead crane |
| Main Application | Long steel material lifting and transportation |
Key Features
Suitable for steel plates, sections, bars, pipes, wires, and coils
Multiple hanging beam structural forms available
Parallel, perpendicular, upper rotating, and lower rotating beam forms available
Electromagnetic lifting helps reduce hook-related surface damage
Suitable for complex steel handling environments
Can improve handling efficiency in production and storage operations
Customized beam form available according to material length and handling direction
Customized Crane Solution
Electromagnetic Overhead Crane with Magnet Beam can be customized according to material type, material length, workshop layout, lifting beam arrangement, magnetic chuck layout, and handling direction.
Available customization includes hanging beam form, magnetic chuck quantity, beam rotation structure, lifting tool arrangement, electrical control system, crane traveling arrangement, and workshop handling process design.
- Customized hanging beam arrangement
- Customized electromagnetic chuck layout
- Fixed or rotating beam structure options
- Customized lifting tool configuration
- Customized workshop material handling process
- Customized crane and transport solution support
