Description
Electric Winch Trolley is a compact lifting and towing device used for vertical lifting, horizontal pulling, and oblique traction of materials. It is suitable for construction, water conservancy projects, forestry, mines, docks, and other working sites where reliable material handling or flat towing is required.

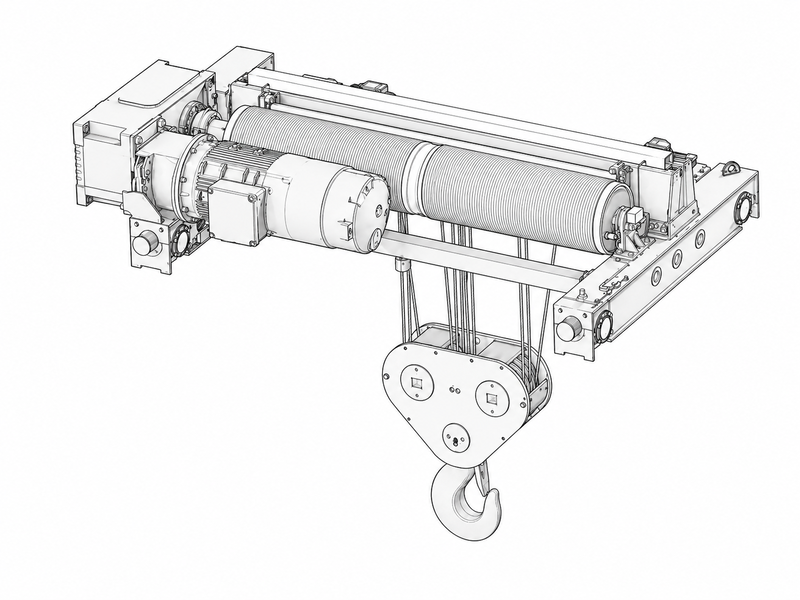

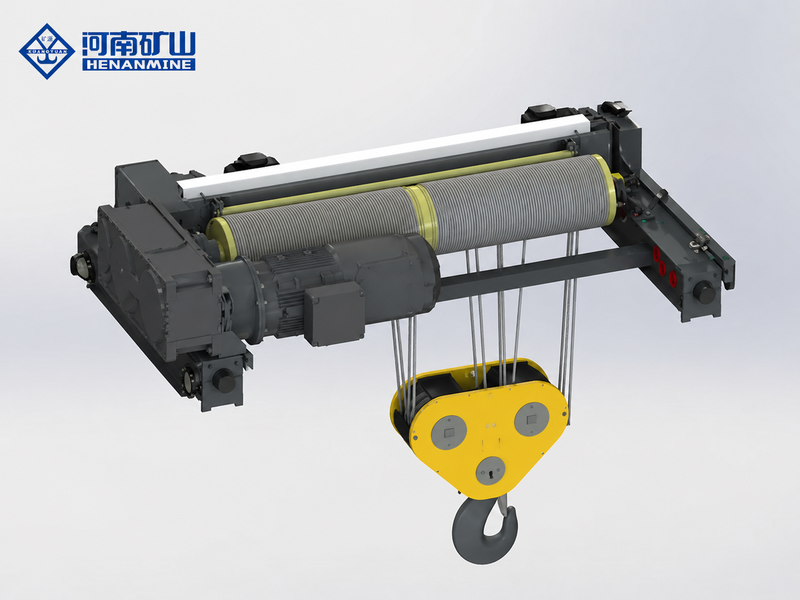

The winch trolley is generally composed of motor, brake, gearbox, reel, steel wire rope, hook assembly, electric control system, and trolley frame. The motor provides driving power, the brake supports safe stopping and holding, the reducer adjusts output speed and torque, and the reel winds the wire rope to complete lifting or pulling operation.
This Electric Winch Trolley can be configured with high-grade steel wire rope, stepless speed control, hardened gear reducer, heavy-duty motor, European wheel, and heavy-duty plug set according to project requirements. It can be matched with different lifting heights, load capacities, voltage options, and hook arrangements.
For selection, please confirm rated load, lifting height, lifting speed, hook type, voltage, control method, installation space, operating environment, and whether the equipment is used for vertical lifting or horizontal towing. For related lifting equipment, you can also view Electric Hoists, Overhead Cranes, and Gantry Cranes.
