Description

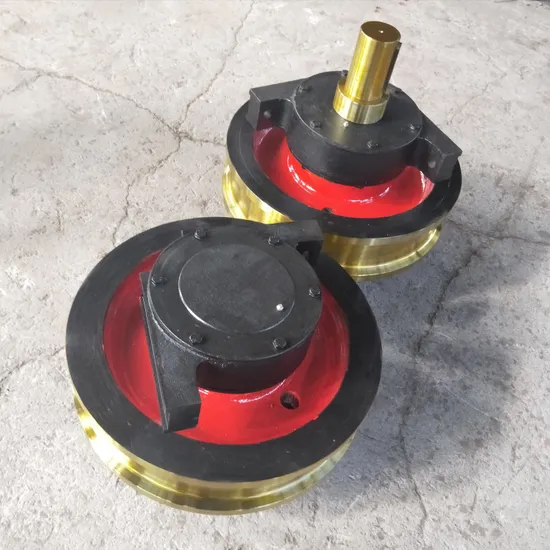

Crane Wheel Block is an important travelling component used to support the crane and load while allowing the crane to move reciprocating on the specified track. According to the product page, the wheel block is composed of wheel, shaft, bearings, and bearing housing, and it is suitable for crane travelling systems and related industrial equipment.
The Crane Wheel Block is forged by alloy steel, processed by lathe, quenched and tempered as a whole, and then assembled with mechanical bearings. Common material options listed on the page include DG50SiMn, 42CrMo, and 65Mn. Standard wheel models cover a wide range from Φ100 to Φ1200, and customized sizes, configurations, and surface finishes are also available according to application requirements.

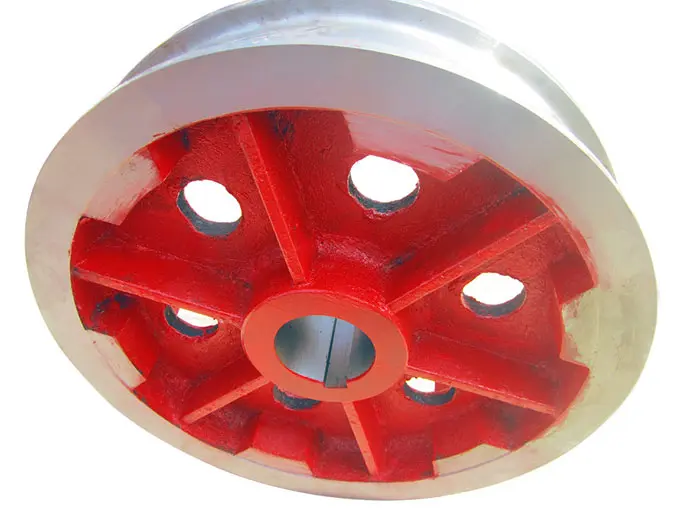

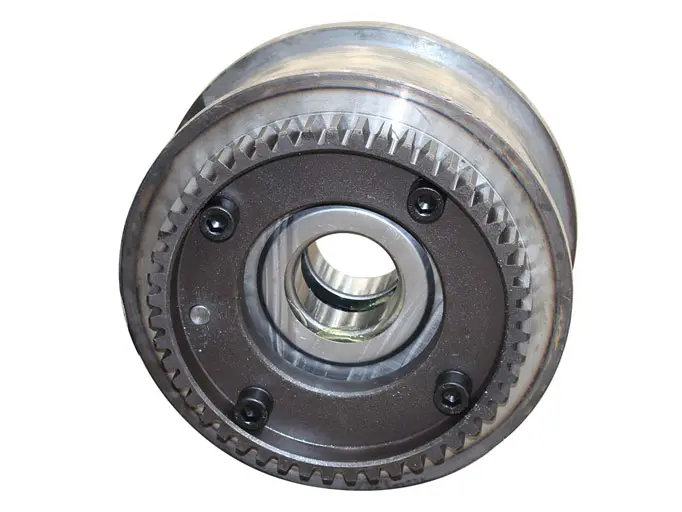

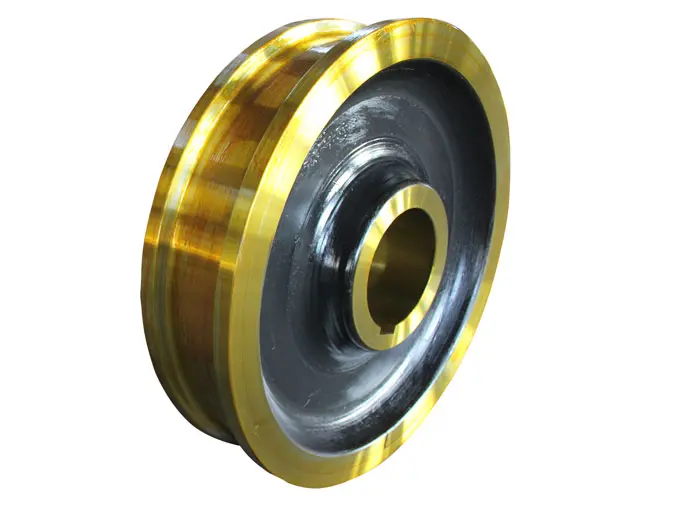

Kinocranes states that its crane wheels, DRS wheels, gear wheels, transfer cart wheels, and sheave wheels are widely used in crane manufacturing, port handling, transportation, airlines, railway locomotives, and large-scale construction machinery. The page also notes that wheel selection should consider application conditions, material, hardness pattern, and heat treatment technology to ensure service performance.
