Crane Travel Power Supply Bus Bar System
Crane Travel Power Supply Bus Bar System provides continuous electrical power transmission for crane travelling, trolley movement, and workshop material handling equipment.
- Product Type
- Crane power supply bus bar system
- Function
- Collect, distribute and transmit electric energy
- System Options
- 5 bus bar system types
- Application
- Overhead cranes, gantry cranes, trolley travel systems
- Conductor
- Copper or aluminum options
- Installation
- Customized according to crane travel length and site layout
Product Overview
Crane Travel Power Supply Bus Bar System is used to supply continuous electrical power for cranes, trolleys, hoists, and other mobile material handling equipment. It helps collect, distribute, and transmit electric energy along the crane travelling path, supporting stable operation in workshops, warehouses, production lines, and industrial lifting systems.

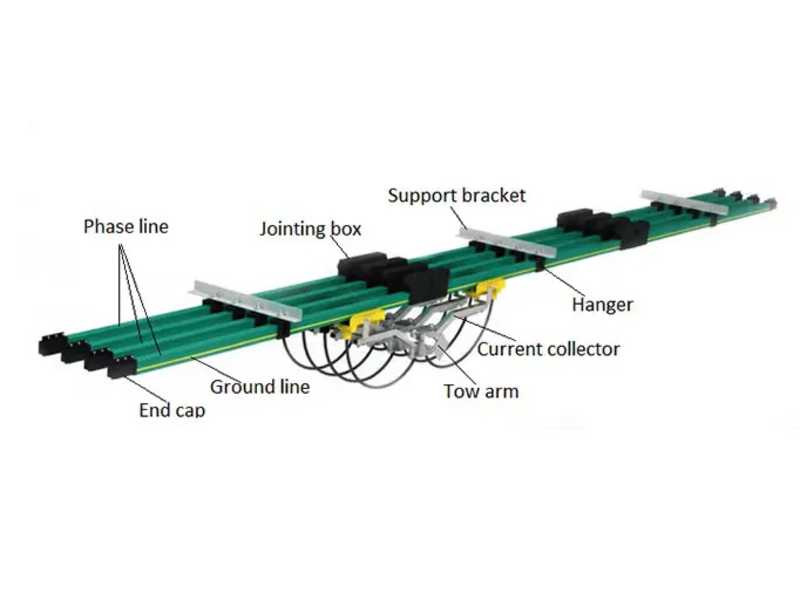

The system normally uses copper or aluminum conductors with insulation materials and matching current collectors. Compared with temporary cable arrangements, a bus bar power supply system provides a cleaner and more organized power transmission solution for crane travel applications.
Crane Travel Power Supply Bus Bar System Options
Common system options include multi-pole seamless bus bar system, single-pole slider wire bus bar system, multi-pole enclosed bus bar system, copperhead conductor system, and drum system. Different systems can be selected according to current capacity, installation space, working environment, protection requirement, and crane travelling distance.
For crane power supply projects, the final selection should confirm the crane type, rated current, voltage, rail length, installation position, indoor or outdoor environment, dust or corrosion condition, collector type, and maintenance requirements. For related lifting equipment, you can also view Overhead Cranes, Gantry Cranes, and Electric Hoists. For electrical and crane safety reference, you may check IEC 61439-6 Busbar Trunking Systems and OSHA Overhead and Gantry Cranes Safety Standard.
Technical Parameters
| Name | Characteristics & Application |
|---|---|
| Multi-pole seamless bus bar system | Small current pass rate; direct contact with air; not closed, not insulated, not waterproof; cost-effective option |
| Single-pole slider wire bus bar system | High current pass rate; each pole is independent, closed, insulated and waterproof; installation space required is relatively large |
| Multi-pole enclosed bus bar system | High current pass rate; four internal contact points; closed, insulated and waterproof; saves installation space |
| Copperhead conductor system | Stable operation; large heat dissipation surface; suitable for high temperature, high dust and corrosive gas environments; withstands strong short-circuit impulse current; compact and easy installation |
| Drum system | Constant force drive; convenient torque adjustment; steady retraction; easy maintenance; mainly suitable for large outdoor equipment |
Key Features
Five system options available for different crane power supply layouts
Copper or aluminum conductor options according to project requirements
Insulated structure supports safer and more organized power transmission
Collector can move with the crane to maintain uninterrupted power supply
Suitable for overhead cranes, gantry cranes, workshop cranes, and material handling equipment
Corrosion resistance, weather resistance, and double insulation design available according to system type
Custom selection according to current, voltage, installation space, rail length, and working environment
Customized Crane Solution
Crane Travel Power Supply Bus Bar System can be customized according to crane type, travelling distance, rated current, voltage, installation space, workshop layout, and working environment.
Available customization includes bus bar type, conductor material, insulation structure, collector arrangement, support bracket spacing, installation accessories, power feed position, expansion joint, end cap, and system layout for indoor or outdoor crane operation.
- Customized bus bar type according to crane application
- Customized conductor system according to current requirement
- Customized collector and bracket arrangement
- Customized enclosed or open conductor rail structure
- Customized layout for overhead cranes and gantry cranes
- Customized installation accessories according to site conditions
Before quotation, please confirm crane type, rated current, voltage, travelling length, installation position, working environment, indoor or outdoor use, and required bus bar system type.
