Ceiling Mounted Workstation Bridge Crane: Ideal For Tight Spaces And Complex Layouts
Ceiling Mounted Workstation Bridge Crane is an overhead lifting system installed directly on the ceiling structure. It does not occupy floor space and is suitable for workshops, warehouses and production areas with limited ground space or complex layouts.
- Installation
- Mounted directly on the ceiling structure
- Main types
- Single girder, double girder, telescopic beam and aluminum
- Lifting device
- Electric chain hoist or suitable lifting mechanism
- Track structure
- Rigid or flexible ceiling mounted system
- Application
- Tight spaces, complex layouts and workstation lifting
- Advantage
- No floor space occupation
Product Overview
Ceiling Mounted Workstation Bridge Crane Overview
Ceiling Mounted Workstation Bridge Crane is an overhead lifting system installed directly on the ceiling structure. It uses strong slings to lift loads and operates through an electric motor or hydraulic system for lifting and horizontal movement. Since it does not occupy floor space, it is suitable for factory workshops, warehouses and production areas with limited ground space.
This crane system offers high space utilization and flexible operation. It can be customized according to specific workshop layouts, lifting requirements and production processes. The ceiling mounted structure is especially useful for tight spaces, complex layouts and workstations where floor-mounted columns are not suitable.
According to different working conditions, the Ceiling Mounted Workstation Bridge Crane can be designed as a single girder, double girder, telescopic beam or aluminum type. Rigid and flexible crane structures can also be selected according to positioning accuracy, track layout and operating requirements.
Main Types of Ceiling Mounted Workstation Bridge Crane
Single Girder Ceiling Mounted Workstation Bridge Crane: The single girder type is assembled using standard straight-track sections and auxiliary standard components. The end trucks of the main girder run on two parallel KBK suspension rails that are perpendicular to the main girder. This system is typically used with a chain hoist, and the trolley travels along the direction of the main girder. It is suitable for planar material handling in workshops and warehouses.
Double Girder Ceiling Mounted Workstation Bridge Crane: The double girder type is designed for handling heavier loads and larger spans. The hoist is positioned between the profiles of the two main girders, helping maximize available lifting height. This structure enhances system rigidity and operational stability, making it suitable for medium to large span areas and heavier material handling applications.
Telescopic Beam Ceiling Mounted Workstation Bridge Crane: The telescopic beam type is equipped with an extendable beam installed between or beneath the main girders. Depending on the design, the telescopic beam can extend beyond the crane runway on one or both sides. This configuration allows the crane to lift and position loads in hard-to-reach areas, such as spaces between structural columns or areas around pipes and ducts.
Aluminum Ceiling Mounted Workstation Bridge Crane: The aluminum type uses an aluminum alloy track system, offering lightweight structure, smooth manual travel and low friction resistance. It has good corrosion resistance and can be suitable for humid, clean or lightweight working environments. The aluminum system is also easy to disassemble and assemble according to the reference information.
For related lifting solutions, you can also view our workstation crane, bridge crane and overhead crane products. For workplace material handling safety, users may also refer to OSHA materials handling and storage guidance.
Technical Parameters
| Parameter | Available Information |
|---|---|
| Product Name | Ceiling Mounted Workstation Bridge Crane |
| Installation Type | Mounted directly on the ceiling structure |
| Main Types | Single girder, double girder, telescopic beam and aluminum |
| Single Girder Type | Standard straight-track sections with auxiliary standard components |
| Single Girder Lifting Capacity | 125kg-1000kg |
| Single Girder Feature | Compact structure with minimal space requirements |
| Double Girder Type | Two main girders with hoist positioned between the profiles |
| Double Girder Lifting Capacity | Up to 2000kg |
| Double Girder Feature | Higher rigidity, better stability and suitable for medium to large spans |
| Telescopic Beam Type | Extendable beam installed between or beneath the main girders |
| Telescopic Beam Feature | Can extend beyond the crane runway on one or both sides |
| Aluminum Type | Aluminum alloy track system |
| Aluminum Type Feature | Lightweight, low friction resistance and corrosion resistant |
| Rigid Structure | Smoother operation with higher positioning accuracy |
| Flexible Structure | Suitable for complex layouts and areas with obstacles |
| Track Design | C-shaped track for rigid system; Ω-shaped track for flexible system |

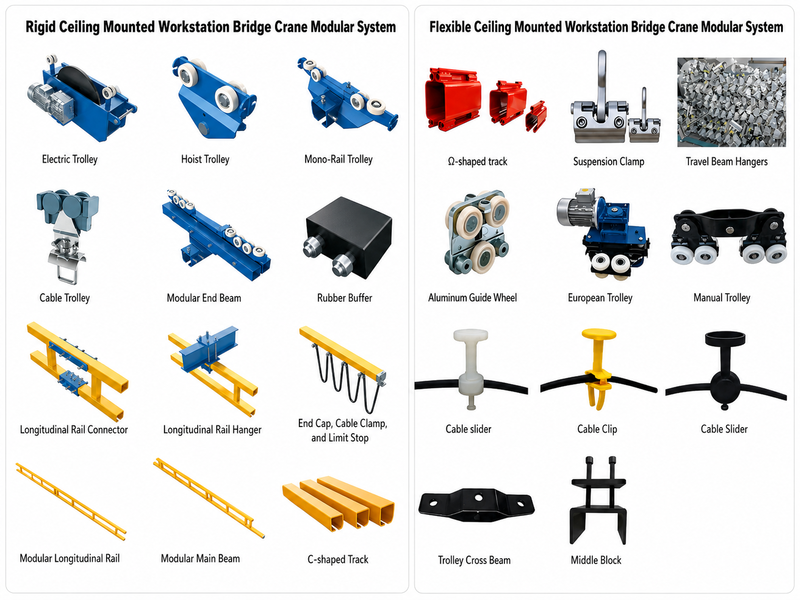

| Main Components | Electric trolley, hoist trolley, mono-rail trolley, cable trolley, modular end beam, rubber buffer, rail connector, rail hanger, end cap, cable clamp and limit stop |
| Application | Workshops, warehouses, clean environments, assembly lines and production areas |
Key Features
Suitable for tight spaces, limited ground areas and complex workshop layouts
Single girder type is compact and suitable for single-operator use
Double girder type provides higher rigidity and lifting capacity
Telescopic beam type can reach hard-to-access lifting positions
Aluminum type is lightweight, smooth-running and corrosion resistant
Rigid structure provides smoother operation and higher positioning accuracy
Flexible structure is suitable for complex track layouts and obstacle areas
Can be used with electric chain hoists or suitable lifting mechanisms
Suitable for workshops, warehouses, assembly areas and production lines
Customized Crane Solution
The Ceiling Mounted Workstation Bridge Crane can be customized according to workshop structure, lifting capacity, span, ceiling condition, track layout and workstation requirements. Please provide the basic lifting and site information, and a suitable ceiling mounted workstation crane solution can be designed according to the actual application.
- Lifting capacity requirement
- Span and runway length
- Ceiling structure and installation condition
- Required crane type: single girder, double girder, telescopic beam or aluminum
- Rigid or flexible ceiling mounted structure requirement
- Working area layout and obstacle positions
- Lifting device requirement, such as electric chain hoist
- Application environment, such as workshop, warehouse, clean area or production line
