Casting Yard Gantry Crane
Casting Yard Gantry Crane is designed for precast beam lifting, bridge girder handling, bridge transport, and bridge construction yard material handling.
Product Overview
Casting Yard Gantry Crane is designed for precast beam yards, bridge construction sites, highway projects, railway projects, and engineering material handling areas. It is mainly used for lifting, transferring, positioning, and stacking concrete girders, bridge beams, precast components, and other large structural loads.

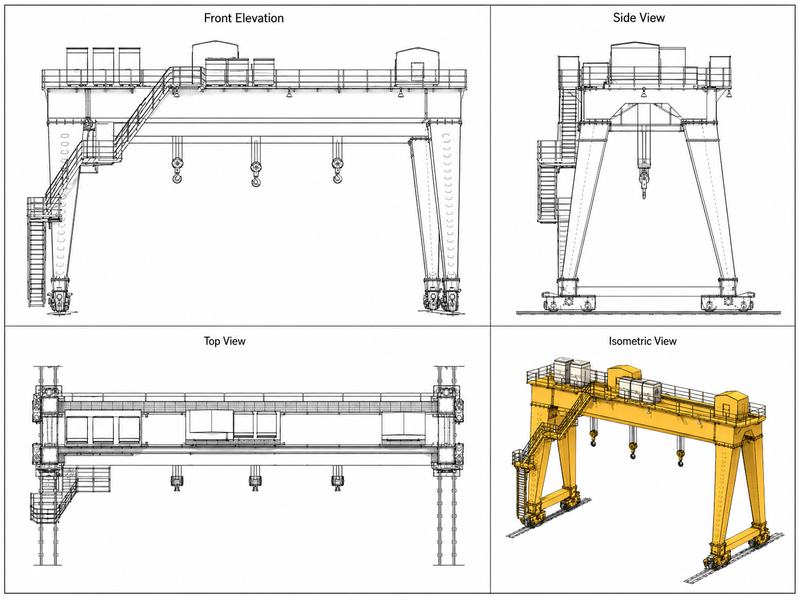

The crane adopts a gantry frame structure with main beam, support legs, ground beams, trolley system, crane travelling mechanism, electrical system, and safety protection devices. According to the lifting process, it can work with hooks, spreaders, pin-type movable pulleys, or customized lifting devices to meet different beam handling requirements.
Compared with ordinary gantry cranes, the Casting Yard Gantry Crane is more suitable for large-span outdoor operation and precast yard construction conditions. The A-type gantry frame provides good rigidity and stable load carrying performance, while truss-type structures can be selected for outdoor areas with larger wind loads to reduce wind resistance and improve overall adaptability.
The crane can be configured with rail clamps, anchoring devices, buffers, rail sweepers, cable reel power supply, trolley conductive system, platforms, ladders, driver’s cabin, limit protection, overload protection, emergency power-off protection, and other safety devices according to project requirements. For synchronized lifting of long concrete girders, two cranes or multiple trolleys can be configured according to the beam size and handling method.
For related lifting equipment, you can also view Gantry Cranes, Overhead Cranes, and Electric Hoists. For crane safety reference, you may check the OSHA Overhead and Gantry Cranes Safety Standard.
Technical Parameters
| Parameter | Casting Yard Gantry Crane |
|---|---|
| Capacity | 20t-900t |
| Span Length | 24-55m |
| Lifting Height | 9-60m |
| Work Duty | A3 |
| Rated Voltage | 220V-690V, 50-60Hz, 3ph AC |
| Work Environment Temperature | -25℃ to +40℃ |
| Relative Humidity | ≤85% |
| Crane Control Mode | Cabin control |
| Main Structure | A-type gantry frame or truss-type gantry frame |
| Retrieval Device | Hooks / Spreaders / Pin-type movable pulleys |
| Main Components | Steel structure, trolley, crane travelling mechanism, electrical system |
| Power Supply | Trolley wire or cable drum |
| Reference Price Range | $10000-600000/set |
Key Features
Suitable for concrete girder lifting, bridge beam transfer, component stacking, and yard material handling

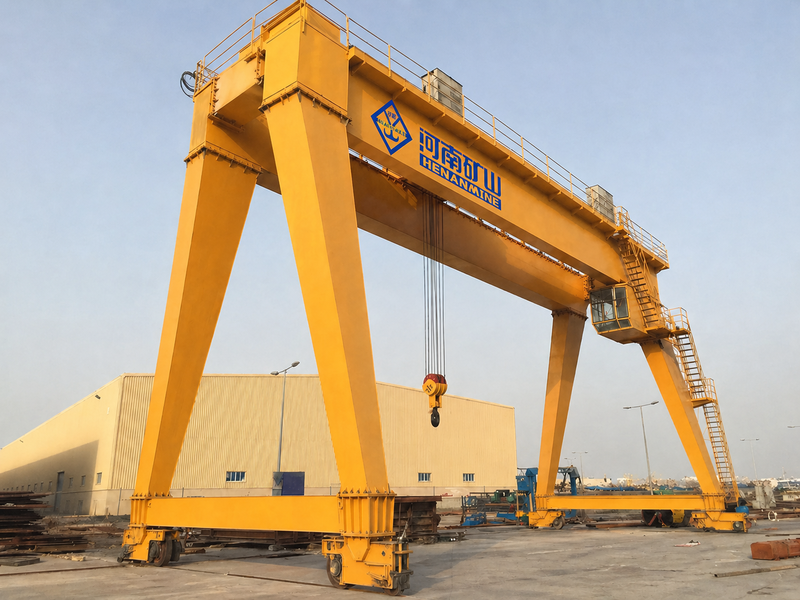

A-type gantry frame provides good rigidity and stable load carrying performance
Truss-type structure can be selected for outdoor areas with larger wind loads
Hooks, spreaders, and pin-type movable pulleys can be configured according to lifting process

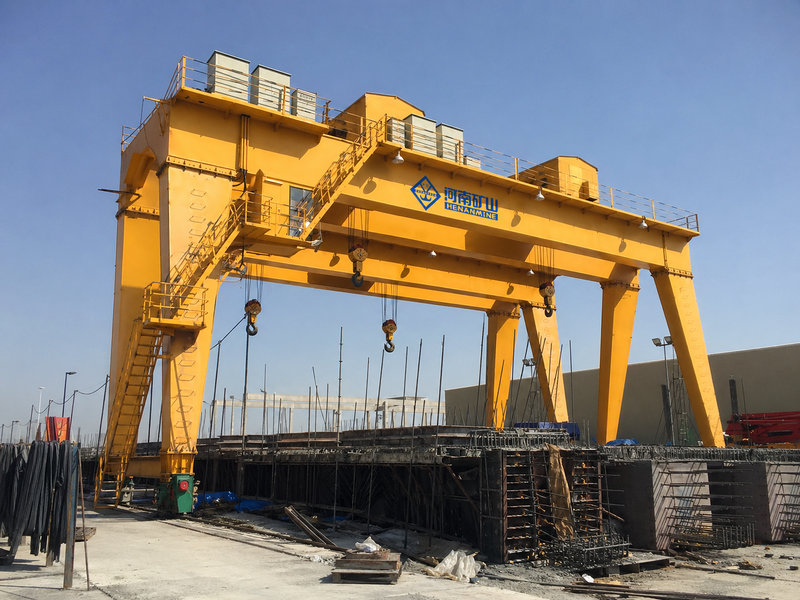

Main hoisting trolley, auxiliary lifting mechanism, trolley travelling system, and crane travelling system available
Rail clamps, anchoring devices, buffers, rail sweepers, and wind-proof devices available for outdoor operation
Platforms, ladders, walkways, and driver’s cabin can be configured for inspection, operation, and maintenance
Synchronized lifting solution available for long concrete girders and large precast components
Customized solution available according to beam size, yard layout, rail foundation, power supply, and lifting process
Customized Crane Solution
Casting Yard Gantry Crane can be customized according to the precast yard layout, beam size, lifting capacity, span, lifting height, rail foundation, outdoor wind condition, and power supply arrangement.
Available customization includes gantry frame type, main beam structure, support leg layout, trolley configuration, main hoisting system, auxiliary lifting mechanism, spreader design, crane travelling mechanism, trolley travelling mechanism, electrical control system, safety protection system, and cabin arrangement.
- Customized capacity, span, and lifting height
- Customized A-type or truss-type gantry frame
- Customized lifting spreader according to concrete girder size
- Customized single trolley, double trolley, or synchronized lifting solution
- Customized rail foundation design support and travelling arrangement
- Customized power supply by cable drum or trolley wire
- Customized cabin control, safety protection, and outdoor wind-proof devices
Before quotation, please confirm the girder weight, girder length, lifting points, span, lifting height, rail length, yard layout, power supply condition, working environment, and whether synchronized lifting is required.
